AVCON-DESK
Audio-Visual Control Desk
Key Features
- Dual Touch Capability: Supports both finger and pen input.

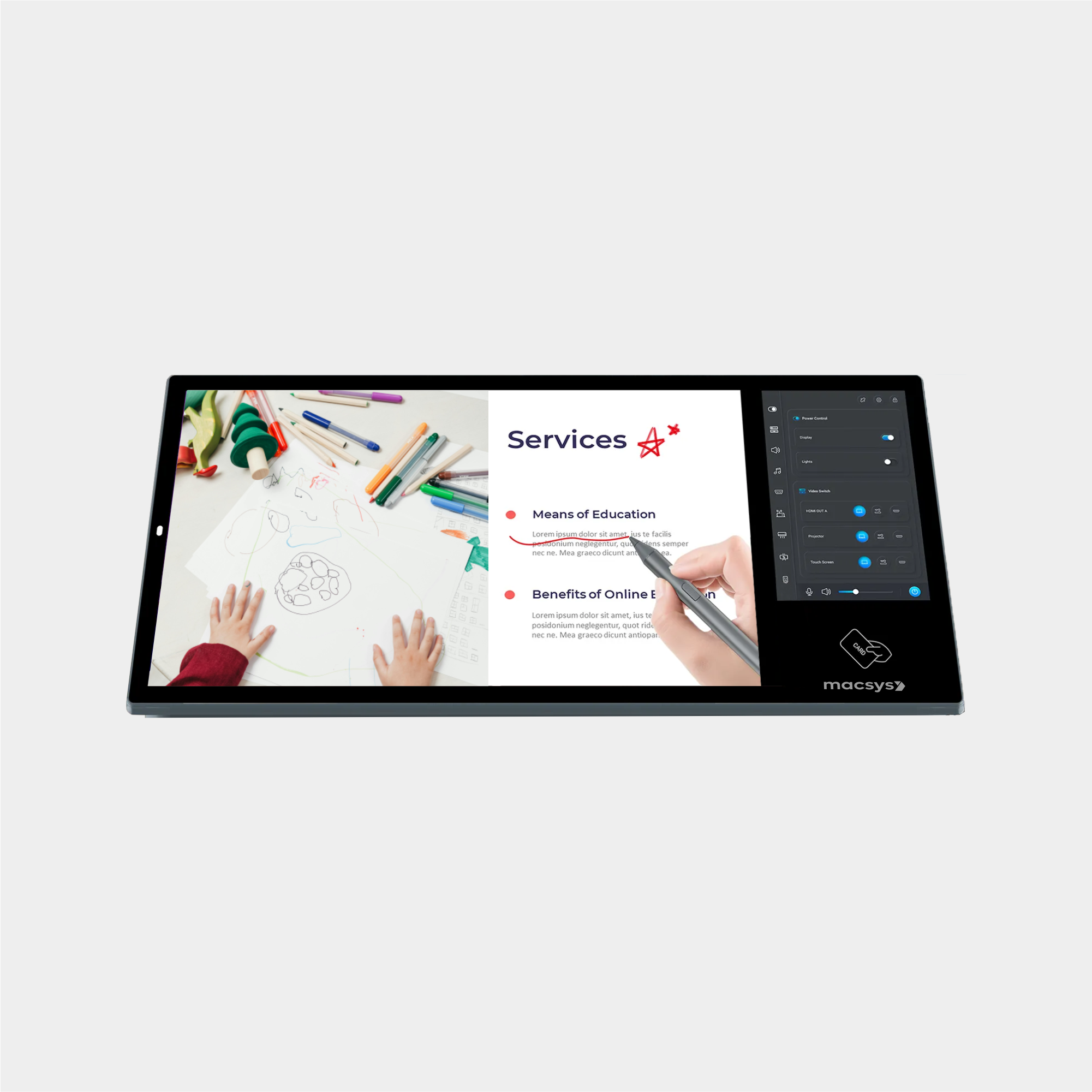

- Dual Screens with Optical Bonding: Enhanced clarity and touch response.

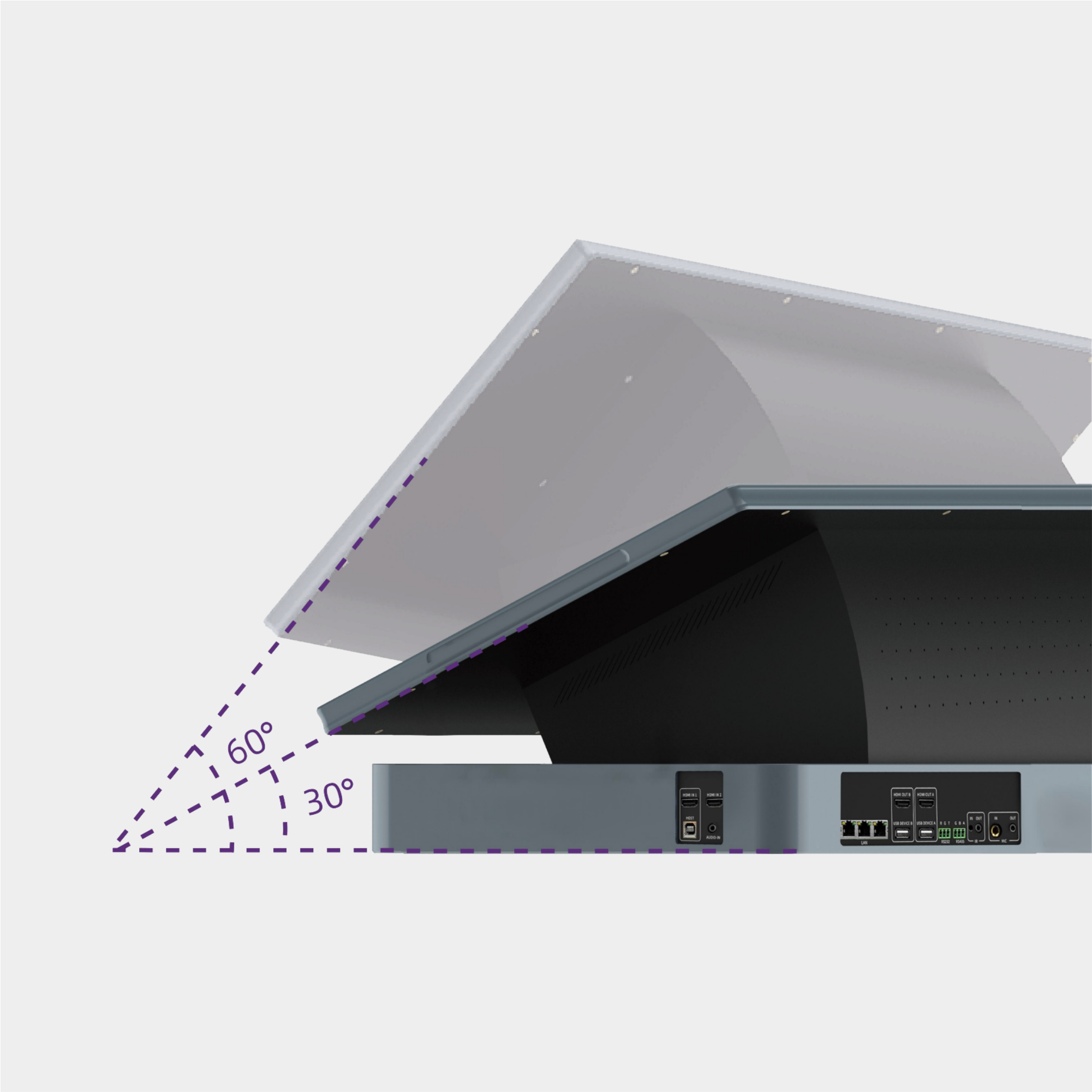

- Adjustable Screen Angle: Range of 30° to 60° for different viewing positions.
- Unified Device Control: One-click management of classroom devices.
- Built-in Computer: Integrated for a clutter-free setup.
- 3×2 AV Matrix Switch: Flexible content display across multiple screens.
- AV Broadcasting & Live Streaming: Campus-wide broadcasting (media server required).

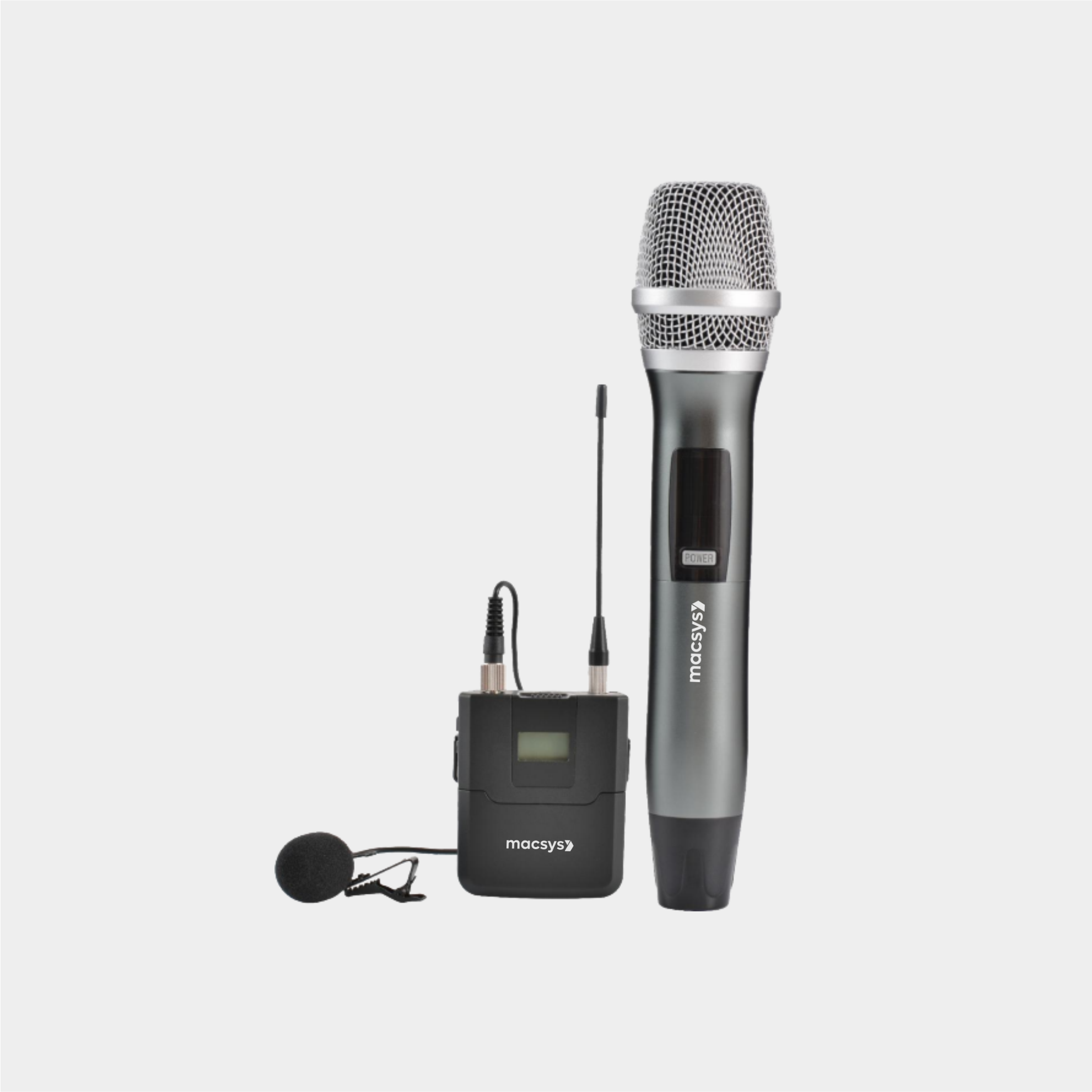

- Wireless Microphone & Sound Amplification: Clear voice amplification and mobility.

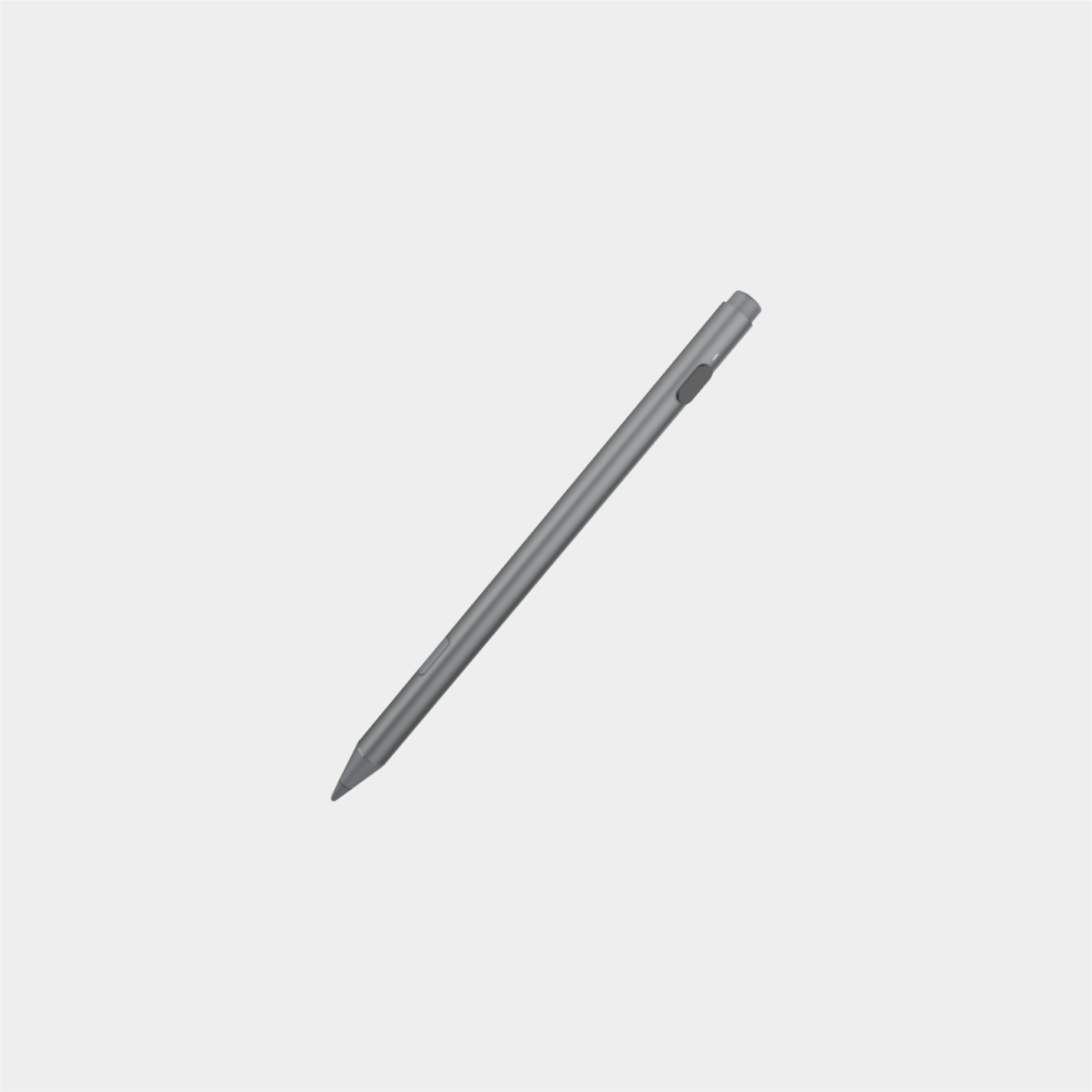

- Precise Pen Control: Active stylus with 4096 pressure levels and dual functionality.
- Wireless Relay Module: Wireless control for connected devices.
Description
Overview
The Macsys AVCON-DESK is an advanced Audio-Visual Control Desk designed to seamlessly integrate into both conference rooms and classroom setups, transforming traditional spaces into modern, digital communication hubs. This versatile Control Desk supports both finger and pen input, allowing for precise annotations and intuitive gesture controls. Its dual screens, enhanced by optical bonding technology, provide a superior visual and touch experience, making it ideal for dynamic presentations and interactive sessions.
The Control Desk adjustable screen angle, ranging from 30° to 60°, offers comfort for both sitting and standing positions, catering to the needs of various presenters in different settings. The integrated high-end computer eliminates the need for external laptops, streamlining the space and freeing up room for other essential equipment.
With its 3×2 AV Matrix Switch, the AVCON-DESK allows for flexible switching and display of content across multiple screens, enabling presenters to share various materials simultaneously or switch between them effortlessly. The Control Desk also facilitates unified control over conference room or classroom devices, including lighting, projectors, and air conditioning, through both local access and network-based remote control.
For comprehensive management, the AVCON-DESK is equipped with AV broadcasting and live streaming capabilities, supporting organization-wide audiovisual distribution and remote participation. The inclusion of a Wireless Microphone ensures that the presenter’s voice is clearly amplified throughout the room, enhancing communication and engagement during meetings or lessons.

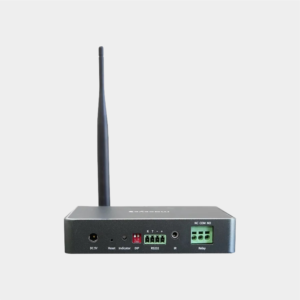

Complementing the podium, the Wireless Relay Module (AVCON-WRM) provides wireless control over connected devices, allowing for easy and efficient management of AV equipment, lighting, and other systems. This module enhances the flexibility and control of the overall environment, making it easier to create an optimized experience in both conference rooms and classrooms.
Technical specifications
| Feature | Details | |
| AVCON-DESK – Audio-Visual Control Desk | ||
| Display Panel Type | IPS (TFT-LCD) | |
| Effective Screen Size | 23.8 inch | |
| Resolution | 1920(H) x 1080(V) | |
| Colors | 16.7M | |
| Brightness | 350 cd/m² | |
| Contrast Ratio | 1000:1 | |
| Surface | 3mm Hardened Anti-Reflection Safety Glass (MOHS 8), AG+AF, Optical Bonding | |
| Viewing Angles | 178° (H), 178° (V) | |
| Control Panel Type | IPS (TFT-LCD) | |
| Control Panel Size | 10.1 inch | |
| Control Panel Resolution | 1200(H) x 1920(V) | |
| Control Panel Brightness | 250 cd/m² | |
| Handwriting Technology | Capacitive, Active Pen | |
| Pen Pressure | 4096 levels | |
| Reading Accuracy | ±0.25 mm (center) | |
| Built-in PC Specifications | Intel® Core™ i5, 8GB RAM, 512GB SSD, Intel® Iris® Xe Graphics eligible | |
| Network Connectivity | 1 × 10/100/1000M Ethernet LAN, Wi-Fi 802.11ac/a/b/g/n; Bluetooth | |
| I/O Ports | HDMI 2.0 in *2, HDMI 2.0 out *2, USB 2.0 (device) *2, USB 2.0 (touch) *1, RS232 *1, RS485 *1, IR-In *1, IR-Out *1 | |
| Power Amplifier | 40W+40W *2, supports up to 4 passive speakers (2 pairs) | |
| Power Supply | 100V~240V AC 50 / 60Hz | |
| Environmental Conditions | 0 – +40°C (use), -15 – +60°C (storage), 20-80% (use), 10-90% (storage) | |
| Stand Adjustment | 30° – 60° | |
| Microphone Type | Handheld Microphone | Lapel Microphone |
| Receiving Sensitivity | ≥ 85 dBm | ≥ 85 dBm |
| Receiver Working Current | 5V / 180mA | 5V / 180mA |
| Frequency Range | 640MHz ~ 690MHz | 640MHz ~ 690MHz |
| Sensitivity | 51 dB±3 dB (0 dB=1V/Pa 1 KHz) | 51 dB±3 dB (0 dB=1V/Pa 1 KHz) |
| Frequency Response | 50Hz ~ 15KHz | 50Hz ~ 15KHz |
| Microphone Type | Dynamic cardioid microphone | Condenser microphone |
| Signal-to-noise ratio (SNR) | ≥ 65 dB | ≥ 105 dB |
| Transmit Power | > 20 dBm | 16~25 dBm |
| Distortion | < 0.5% | < 0.5% |
| Effective Distance | < 40 m | < 40 m |
| Latency | < 5 ms | < 5 ms |
| Operating Temperature | -25°C to 60°C | -25°C to 60°C |
| Power Supply | 2*AA batteries | 2*AA batteries |
| Microphone Working Current | 100mA @ 3V | 200mA @ 3V |
| Battery Lifetime | 12 Hours | 5 Hours |
| AVCON-WRM Wireless Relay Module (Optional) | ||
| AC Power Supply | 90-300VAC | |
| Input Power Consumption | < 3W | |
| Working Environment | -20°C to 85°C | |
| Wi-Fi | IEEE 802.11 b/g/n 1T1T 2.4GHz | |
| Control Interface | 1RELAY, 1RS232, 1*IR OUT | |
| Maximum Load (Resistance) | 250VAC, 10A | |
| Maximum Switching Power | 2500VA | |
| Wireless Connection | 2.4GHz wireless transmission | |
| Unified Control | Remote control through Macsys Console | |
| Device Control Interfaces | Supports RS232, IR, Relay interfaces | |
| Device Control Extension | Up to 4 more WRM can be connected to AVCON-PLUS or AVCON-DESK | |

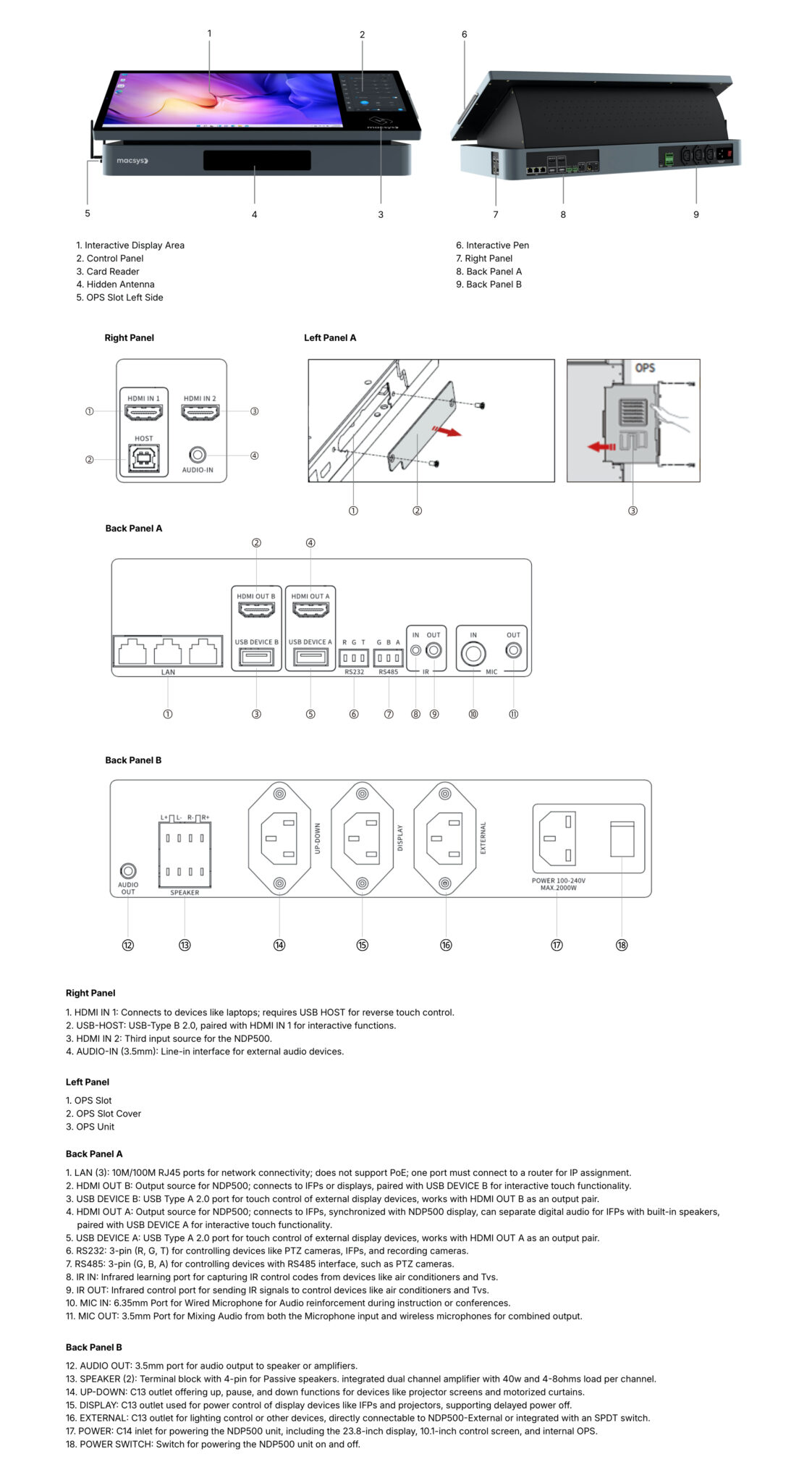

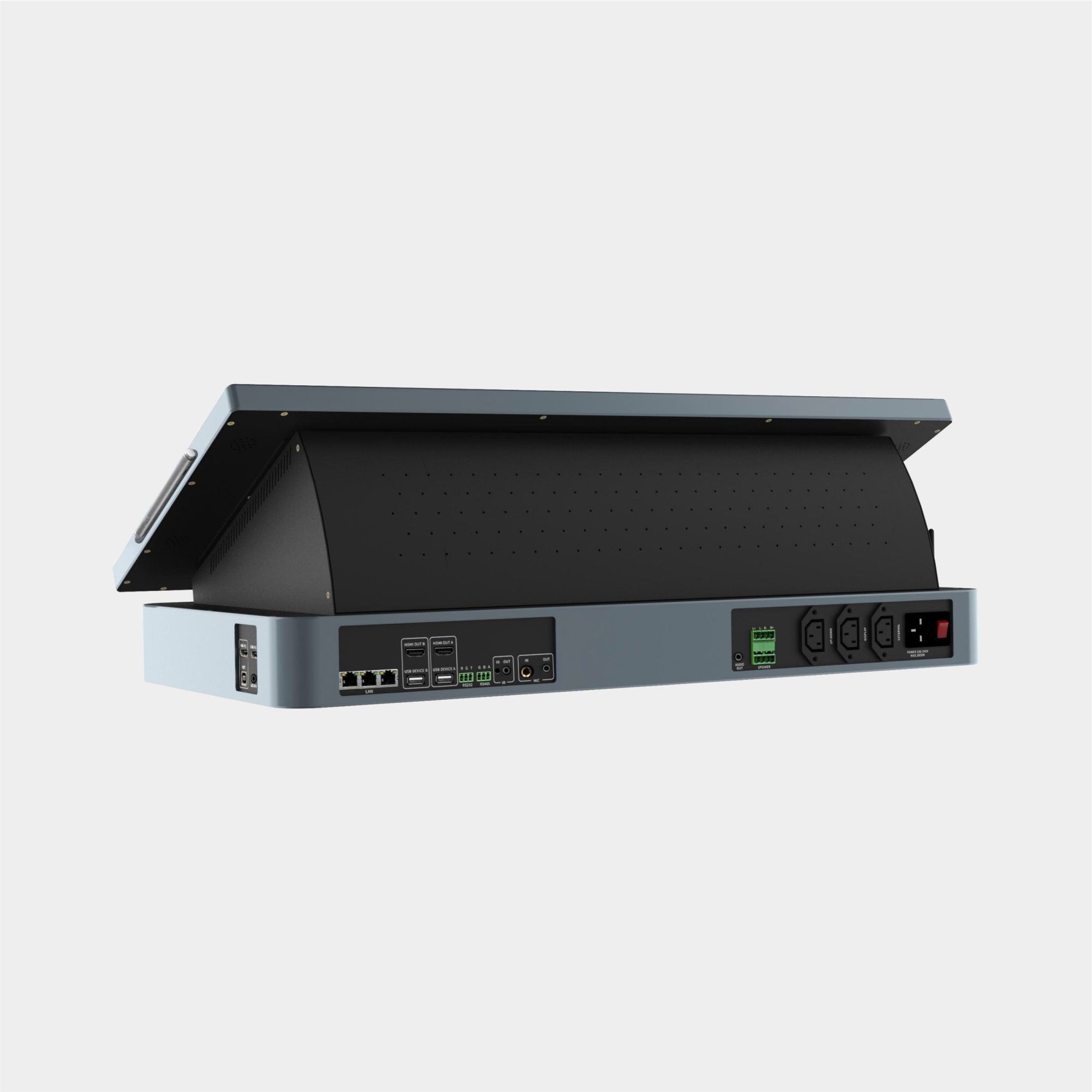

Front / Rear Panel

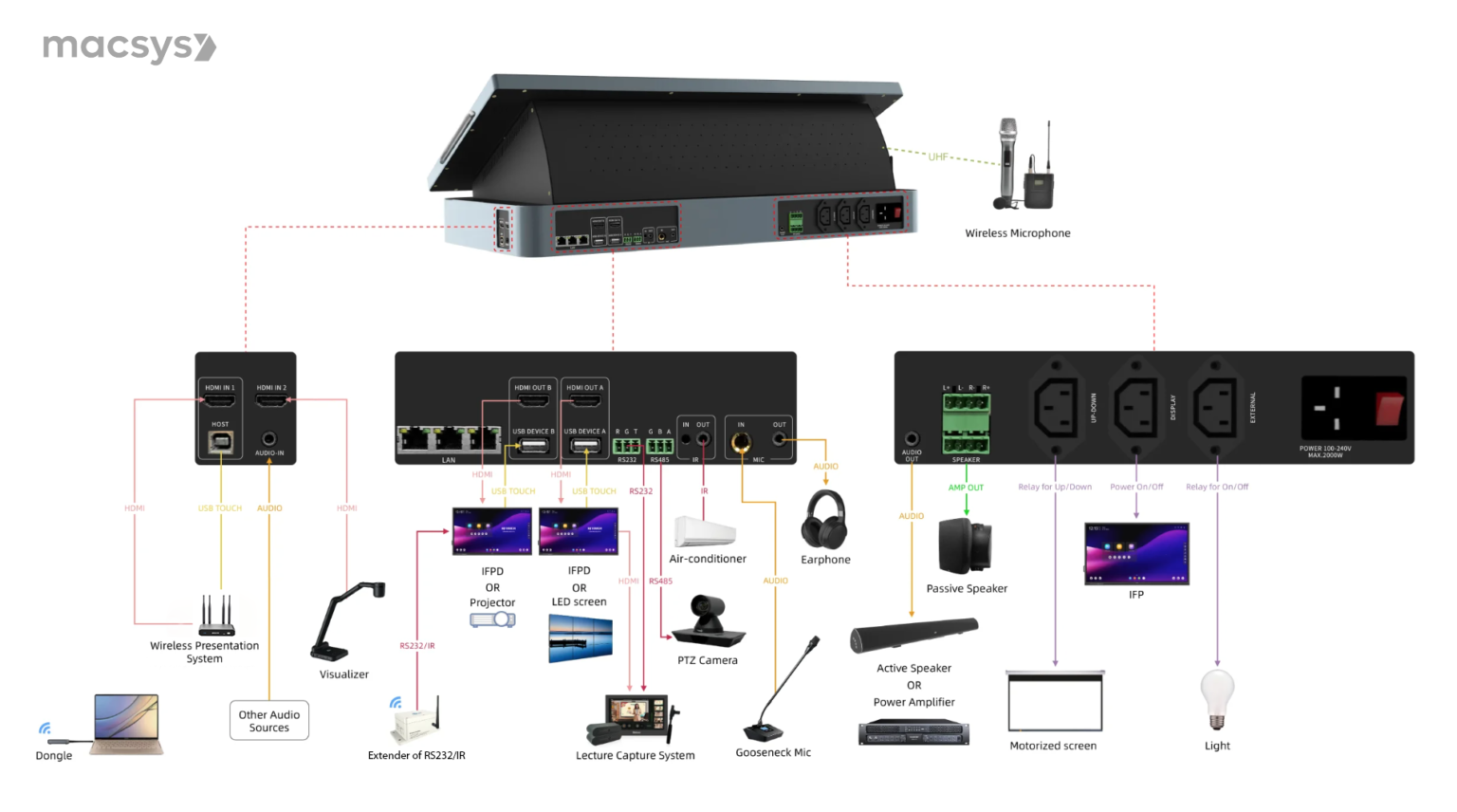

Connection Diagram
