AVCON-WRM
Wireless Relay Module for AVCON Series Controller

Introducing the AVCON-WRM Wireless Relay Module, a vital accessory for enhancing the AVCON Series Controller system. This sophisticated control box connects effortlessly to the AVCON Series via 2.4GHz wireless transmission, eliminating the need for additional wiring or modifications to existing electrical setups.

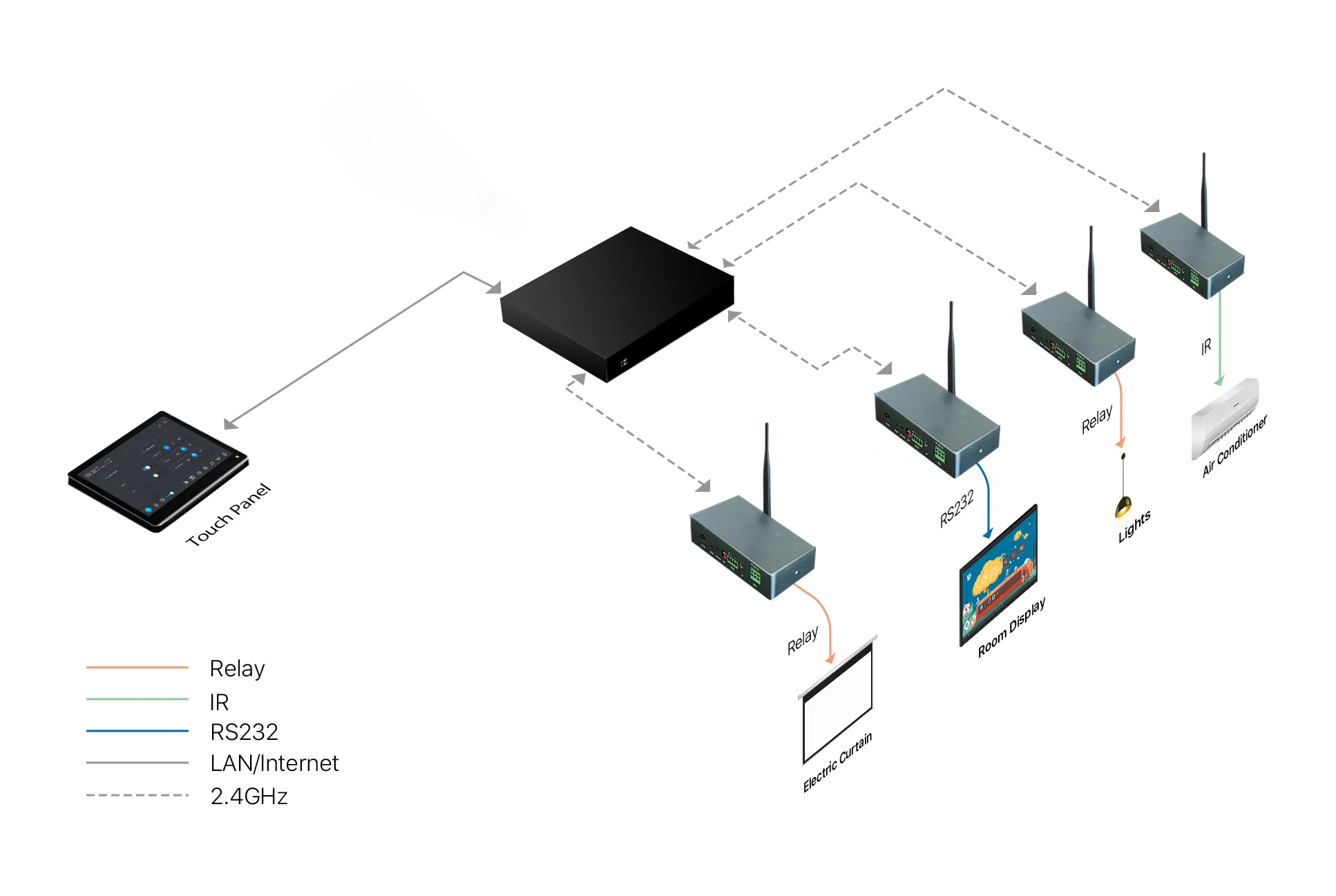

The AVCON-WRM provides centralized control over various devices through the Web Console, which can be accessed from anywhere via a Touch Panel or a web browser on a PC. It supports both instant and scheduled control, offering unparalleled flexibility and convenience for users.

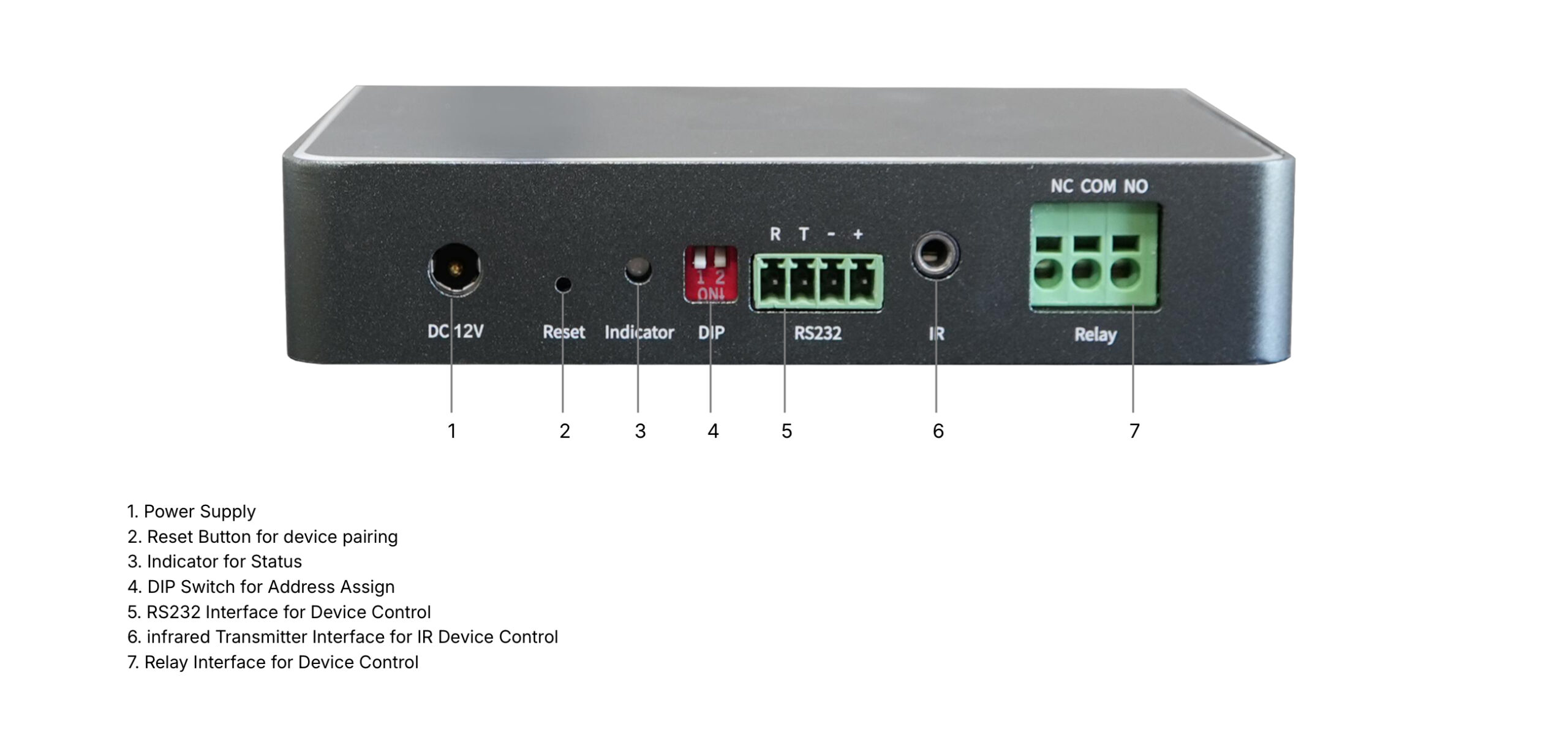

Equipped with multiple control interfaces, the AVCON-WRM allows for wireless management of devices through RS232, IR, and Relay connections. Each unit handles one type of control, making it adaptable to diverse environments. The AVCON-WRM also extends the capabilities of the AVCON Series Controller by enabling the management of additional devices, with up to four AVCON-WRM units connectable to a single AVCON Series Controller.

Designed for efficiency and reliability, the AVCON-WRM operates on an AC power supply ranging from 90-300VAC with a low power consumption of less than 3W. It performs reliably across a wide temperature range of -20°C to 85°C. The module supports IEEE 802.11 b/g/n 2.4GHz WiFi for stable wireless communication and features an SPDT relay interface with a maximum load capacity of 250VAC, 10A, and a maximum switching power of 2500VA. Additionally, it includes 1 x RS232 and 1 x IR remote control interface for comprehensive device management.

The AVCON-WRM is the ideal solution for expanding the control capabilities of your AVCON Series Controller system, delivering robust, flexible, and wireless management of your room technology.
