PAS-NMPI3208
Network Multi-Zone interface Unit
Key Features
- Fast Start-Up High-speed dual-core ARM + DSP chip, start-up time ≤ 3 seconds.
- 32 Alarm Inputs support short circuit and DC 24V inputs for external fire alarm linkage.
- Scalable: Integrates multiple IP fire alarm modules for expanded input capacity.
- 8 alarm outputs (short circuit, normally open contact, DC24V/1A).
- Automated alarm forwarding to the server with support for next-layer and all-zone alarms.
- Ethernet connectivity (RJ45) with cross-network segment and routing support.
- 1U rack-mount design for easy installation in control rooms.
- Fast startup time (< 3 seconds) for reliable emergency response.
- Wide operating range: -10℃ ~ 70℃, ≤90% RH.
Description
Overview
The Macsys PAS-NMPI3208 is a 1U rack-mount IP alarm interface unit designed for centralized fire and security alarm management over Ethernet networks. It features 32 alarm input channels (switch/voltage selectable) and 8 short circuit alarm outputs for flexible linkage across systems and zones. Powered by an industrial-grade dual-core ARM + DSP architecture, the unit delivers rapid startup in under 3 seconds and supports automatic forwarding of alarm information to a server for coordinated task execution. Alarm sound files are stored on the server to trigger alerts, while Ethernet with cross-network routing ensures wide deployment flexibility.
Technical specifications
| Feature | Details |
| Alarm inputs | 32 channels |
| Alarm outputs | 8 channels short circuit output |
| Output contact type | Normally open contact |
| Output contact capacity | DC24V / 1A |
| Input mode selection | “switch volume input” / “power input” via “INPUT SWITCH” |
| Voltage input range (control) | DC12V~DC24V |
| Processor architecture | ARM + DSP |
| Startup time | less than 3 seconds |
| Network interface | 1 × RJ45 Port |
| Network capability | Operates anywhere with Ethernet; supports cross-network segment and routing |
| Alarm handling | Automatically dispatches alarm info to server; supports next layer and all zones |
| Prestored alarm files | Alarm sound files stored on server for “alert generator” |
| Power supply | AC100V～240V ,50～60Hz |
| Power consumption | ≤15W |
| Form factor | 1U Rack Mount |
| Operating temperature | -10℃～70℃ |
| Operating humidity | ≤90%RH（Not condensing) |
| Dimensions | 483×259×44mm |
| Weight | 2.7Kg |
| Accessories | 32 × Alarm Input Interface; 8 × Alarm Output Interface; 1 × RJ45 Port |
| Power input interface | AC100V-240V/50Hz～60Hz |
| Ground terminal | Ground connection terminal |
| Certification | CE, ROHS Compliance |

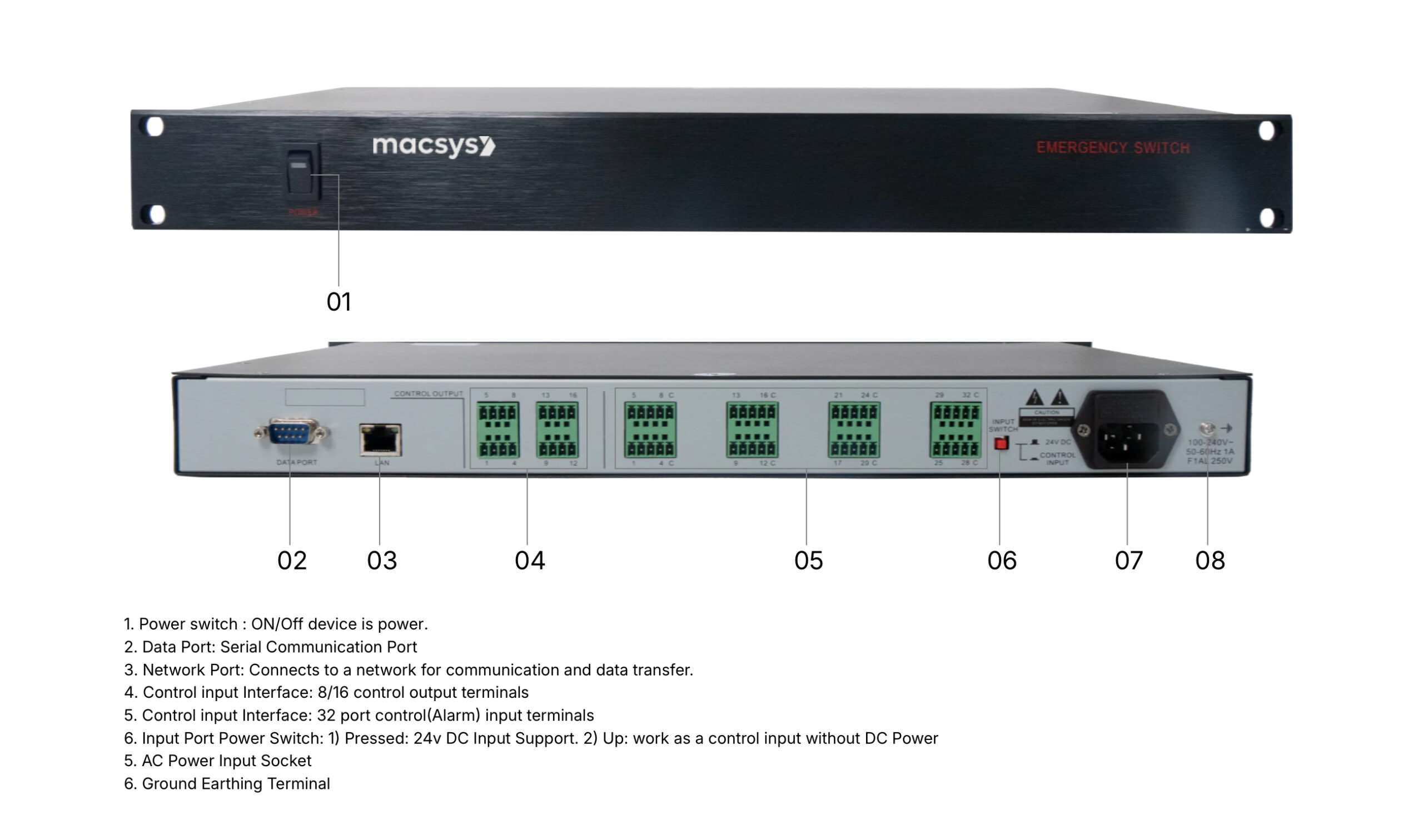

Front Panel
