Network Audio Control Panel
Key Features
- 4-inch capacitive touchscreen for intuitive broadcast control.
- Remote task broadcasting with real-time volume adjustment.
- Manual AOD task triggering and access to AOD MP3 files from the PAS-NA1000 media center.
- Compact installation in an 86-type wall box with black plastic housing.
Description
Overview
The Macsys PAS-NACP is a sleek Network Audio Control Touch Panel designed for 86-type wall box installations. Featuring a 4-inch capacitive color touchscreen (480×480 resolution), it provides intuitive access to broadcasting, on-demand media, and real-time volume control of individual devices.
Seamlessly integrated with PAS-NA1000 server, the PAS-NACP supports remote task broadcasting, manual AOD triggering, and media playback from the server’s media center.
With Ethernet RJ45 connectivity (TCP/IP, UDP, ARP, ICMP, IGMP), it supports cross-segment and cross-router networking. The device offers flexible configuration via web interface or on-device settings, operates on AC100–240V, and is built in a compact 86×86×37.5mm black plastic housing for dry indoor use.
Technical specifications
| Feature | Details |
| Type | Network Wall Mount Audio Touch Panel |
| Installation Format | 86-type wall box |
| Screen Type | 4-inch capacitive color touchscreen |
| Resolution | 480 × 480 |
| Network Interface | 10BASE-T/100BASE-TX RJ45 |
| Supported Protocols | TCP/IP, UDP, ARP, ICMP, IGMP |
| Ethernet Compatibility | Cross-segment and cross-router support |
| Remote Broadcast Control | Task broadcasting with real-time volume adjustment |
| Manual AOD Trigger | On-demand playback and manual AOD task triggering |
| Media Access | Access AOD MP3 files from the PAS-NA1000 media center |
| Configuration | Web interface or on-device settings |
| Power Supply | AC100–240V, 50/60Hz |
| Power Terminals | N (Neutral), L (Live input), L1 (Live output), L2 (Live output) |
| Operating Temperature | 0℃ ~ +40℃ |
| Operating Humidity | 5%–90% RH (non-condensing) |
| Installation Environment | Dry indoor locations only |
| Housing Material | Plastic |
| Color | Black |
| Dimensions | 86 × 86 × 37.5 mm |
| Weight | 0.21 kg |
| Accessories Included | Quick Installation Guide, Terminal (3.81–2P) |
| Certification | CE, ROHS Compliance |

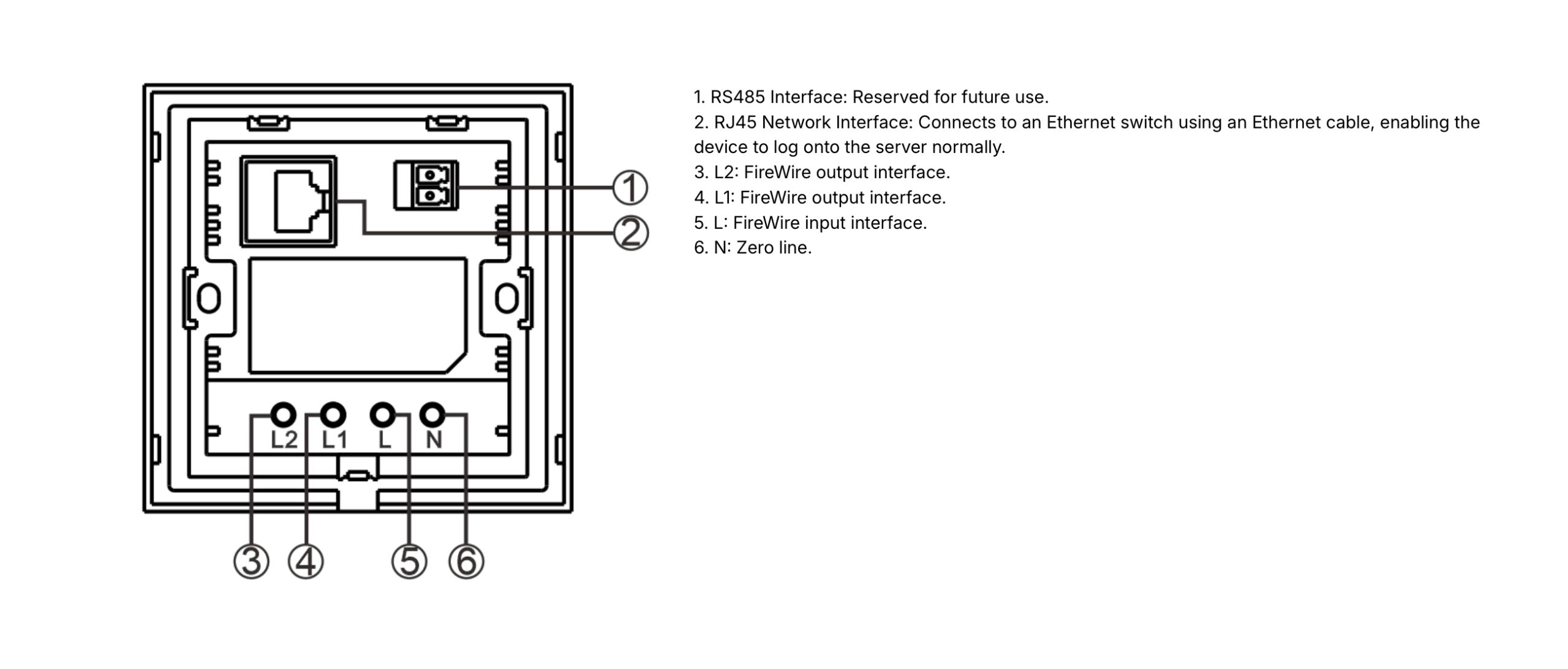

Rear Panel
