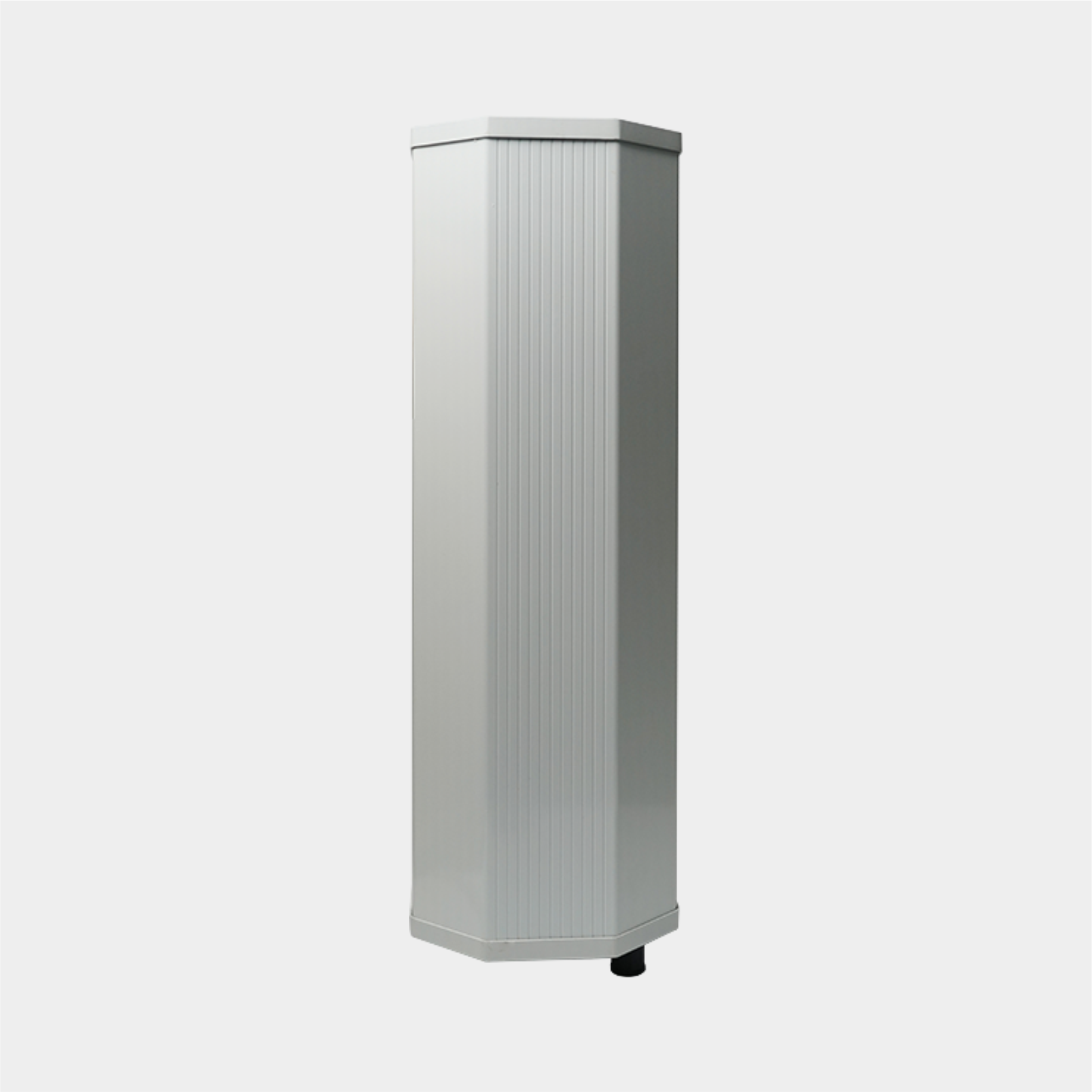

PAS-NOCS30
High-Performance Network Outdoor Column Speaker 30-Watt
Key Features
- IPX5-rated all-metal enclosure with vertical mount for outdoor durability.
- SIP-compatible with RJ45 Ethernet for PBX integration and cross-network access.
- Ambient noise detection with auto volume adjustment and remote server control.
- Built-in mic & Speaker for one-touch, full-duplex intercom and hands-free paging.
- Offline scheduling via built-in flash/clock with FTP task import for autonomous playback.
- Web-based setup with remote firmware upgrades and loop detection for monitoring.
Description
Overview
The Macsys PAS-NOCS30 is a 30W IP Outdoor Column Speaker that integrates network audio decoding, digital amplification, and a loudspeaker in one unit for simplified installation. Its IPX5 all-metal enclosure ensures durability in parks, campuses, plazas, and other outdoor environments.
The speaker supports SIP protocol with a 10/100 RJ45 interface for seamless PBX integration and remote access. Key functions include offline scheduling, ambient noise-based volume control, loop detection, and remote web/firmware management. It delivers 200Hzā18kHz frequency response, ā„80dB S/N ratio, and 90dB sensitivity for clear, powerful sound.
With a built-in microphone for full-duplex intercom and broadcasting, and vertical surface-mount design for reliable all-weather use, the PAS-NOCS30 provides robust, high-quality audio and emergency communication in demanding outdoor conditions.
Technical specifications
| Feature | Details |
| Product | High-Performance Network Outdoor Column Speaker 30 Watt |
| Enclosure rating | IPX5 |
| Use cases | Public address, music streaming, pre-recorded message broadcast, scheduled announcements |
| Typical environments | Park, Playground, outdoor plaza |
| Intercom function | One-touch call for full-duplex intercom, pre-set via server |
| Hands-free hardware | Built-in microphone and speaker for calling and broadcasting |
| Audio decoding | MP2, MP3, PCM, ADPCM |
| Sampling and bit rate | 8kHz~44.1kHz, 16bit, 8kbps~320kbps |
| Signal-to-noise ratio | ā„80dB |
| Frequency response | 200Hz-18KHz |
| Sensitivity | 90dB/M/W |
| Network interface | 10BASE-T/100BASE-TX RJ45 |
| Supported protocols | TCP/IP, UDP, ARP, ICMP, IGMP |
| SIP interoperability | Standard SIP; integrates with mainstream SIP PBX systems |
| Volume control | Ambient noise detection with automatic volume adjustment; remote volume via server |
| Offline playback | Built-in flash and clock; scheduled tasks are playable when offline |
| Monitoring | Built-in loop detection for remote monitoring and maintenance |
| Configuration | Web interface; remote firmware upgrades |
| Power supply | AC220V/50Hz |
| Power consumption (variant set) | ā¤40W (Power Output: 30W); |
| Operating temperature | -20ā~+55ā (-4ā~+131ā) |
| Operating humidity | 10%-90% RH non-condensing |
| Mounting | Surface-mounted; vertical installation only |
| Shell color/material | White & Aluminium Alloy |
| Grille color/material | White & Steel |
| Grille finish | Powder Spraying |
| Bracket material | Steel |
| Dimensions | 227x125x510mm |
| Weight | 5.1kg |
| Standard accessories | Quick Installation Guide; Power Adaptor (DC24V/2.75A); Rectangular metal piece; 2Ć L-type installation frame; 2Ć Nut & Spring washers; Waterproof tail wire connector |
| Certifications | CE, ROHS Compliance. |

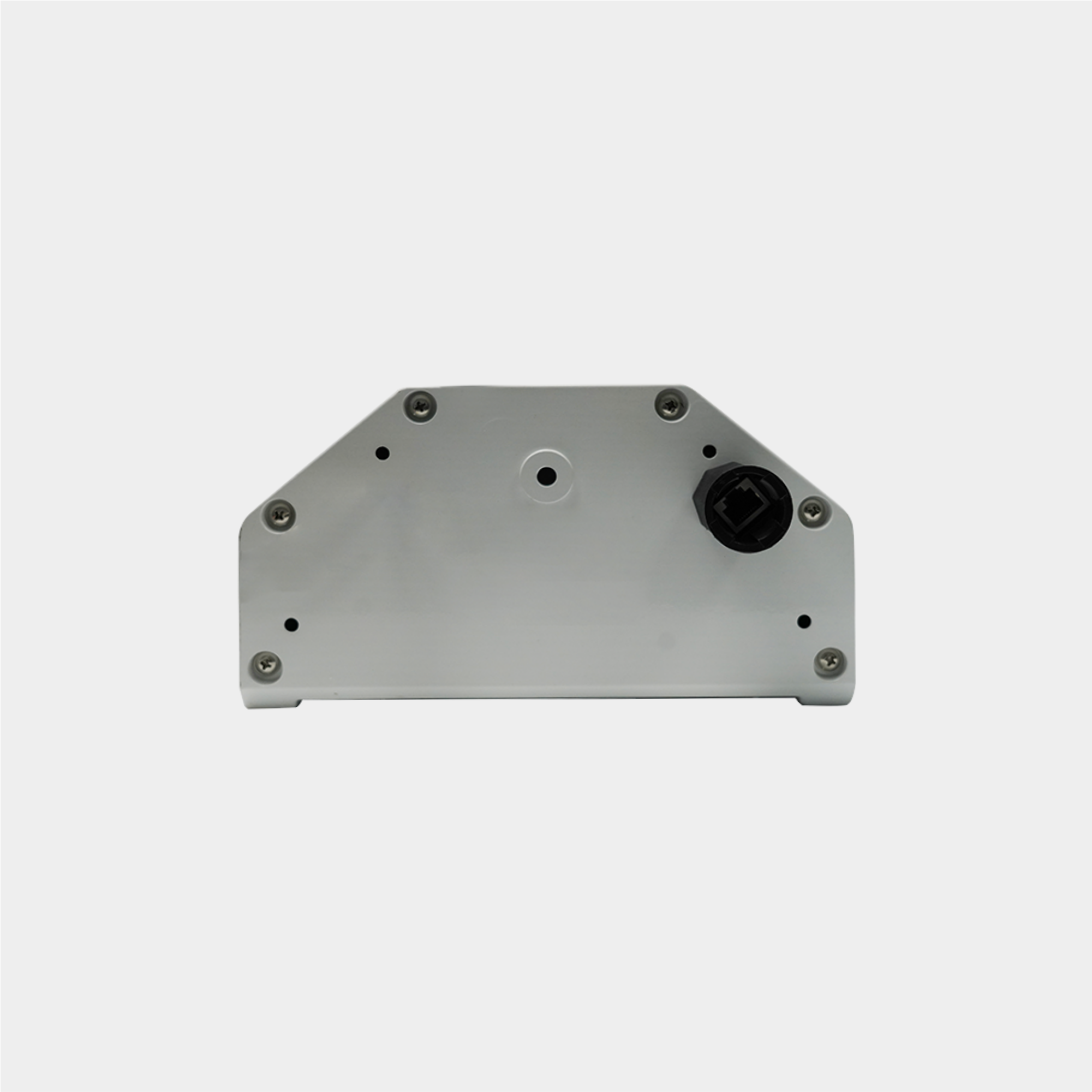

Front / Rear
Panel

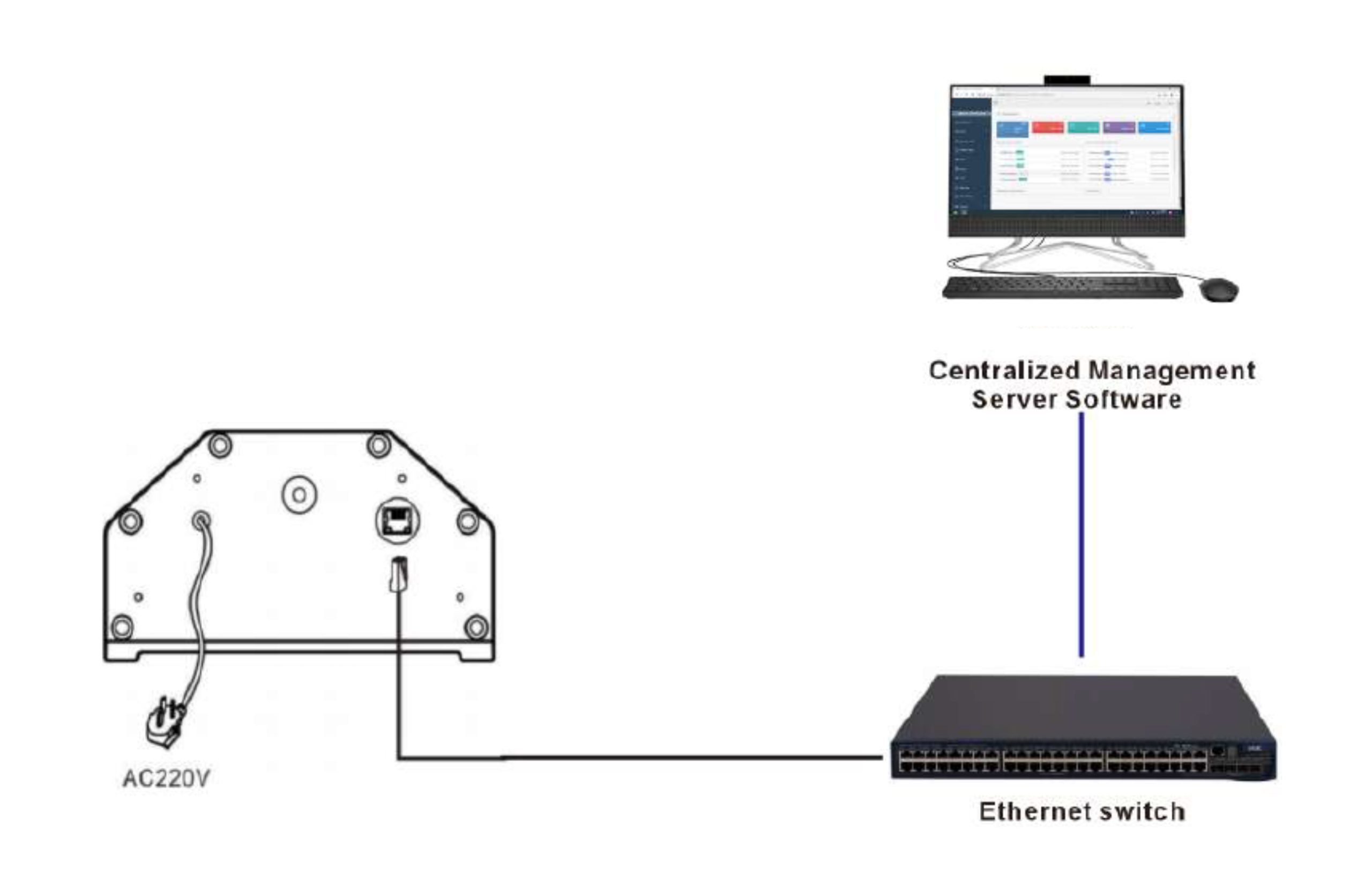

Connection Diagram
