PAS-NHS10
High-Performance PoE Horn Speaker
Key Features
- Durable Build: Aluminum alloy housing and stainless steel bracket.
- Powerful Sound: 120dB output via POE for clear communication.
- Waterproof Microphone: High-definition 2-way intercom with dynamic volume adjustment.
- Protocol Support: Compatible with SIP and ONVIF for easy integration.
- Weatherproof: IP66 rating, operational from -40°C to 70°C.
- Flexible Power: Supports POE and POE+, DC 24V.
- I/O: expansion with 2 alarm inputs and 1 alarm output
- Remote Management: Allows for remote control and online upgrades.
Description
Overview
The Macsys PAS-NHS10 is an advanced outdoor communication system engineered for reliability and high performance in tough environments. This robust device features a solid aluminum alloy housing with a stainless steel bracket, ensuring durability and resilience. It integrates an amplifier with high-sensitivity speakers capable of producing 120dB of clear sound when powered through POE (Power Over Ethernet), making it ideal for effective communication in noisy or expansive outdoor areas.
The PAS-NHS10 IP PoE Horn Speaker designed for public address and notification, supporting SIP for VoIP systems and multicast paging without SIP registration in multicast mode. It delivers maximum SPL of 120dB with a waterproof microphone enabling high-definition 2-way intercom and dynamic volume adjustment. Built for harsh environments, it features an IP66 aluminum alloy housing with a stainless steel bracket and operates from -40℃ to +70℃ at ≤90% RH non-condensing. Power options include DC 24V/1A, PoE (IEEE802.3af), and PoE+ (IEEE802.3at), with web or Config configuration and remote self-check, management, and online upgrades. Integration spans SIP PBX systems and ONVIF-compatible third-party monitoring platforms, with relay I/O for emergency buttons, strobe lights, and pre-set alarm playback.
Technical specifications
| Feature | Details |
| Device type | IP PoE Horn Speaker |
| Protocol compatibility | SIP, ONVIF, HTTP, UDP, ARP, ICMP, IGMP |
| Intercom capability | 2-way intercom |
| Max sound pressure | Max SPL: 120dB |
| Sensitivity | 109dB±3dB (1W, 1m) |
| Audio codecs | G.711A-law, G.711μ-law, G.722 |
| Sampling & bit rate | 8kHz~44.1kHz, 16bit, 8kbps~320kbps |
| Frequency response | 280Hz~12.5kHz |
| Signal-to-noise ratio | ≥85dB |
| Power input options | DC 24V/1A, PoE (IEEE802.3af), PoE+ (IEEE802.3at) |
| Standby power | ≤3W |
| Rated output power | 10W(MAX:12W) |
| Network interface | 10BASE-T/100BASE-TX RJ45 |
| Setup methods | Web Interface or Config Tool |
| Ingress protection | IP66 |
| Operating temperature | -40℃~+70℃ |
| Operating humidity | ≤90% RH non-condensing |
| Installation method | Wall-mounted or Pole |
| Installation environment | Outdoor Locations |
| Enclosure material | Aluminum Alloy |
| Bracket material | Stainless Steel |
| Color | Off-White |
| Dimensions | 233*173*281mm |
| Weight | 1.6KG |
| Warranty | 2 Years Limited |
| Power input port | Power Input Port (DC24V/1A) |
| Audio input port | Reserved |
| Alarm input | 2 Alarm Input Port |
| Alarm output | Alarm Output Port |
| Network port | Network Port |
| Accessories included | 1×2-Pin Pluggable Terminal Block Connector; 1×4-Pin Pluggable Terminal Block Connector; 1×6-Pin Pluggable Terminal Block Connector; |
| ONVIF platform use | 3-rd party monitoring system |
| Multicast paging | Multicast address and priority can be set on its webpage; No SIP registration required for speakers in a multicast |
| Remote features | Remote Self-Check; Remote management; Online upgrades |
| Microphone | Waterproof microphone with dynamic volume adjustment |
| Housing | Aluminum alloy housing with stainless steel bracket |
| Certifications | CE, RoHS compliance |

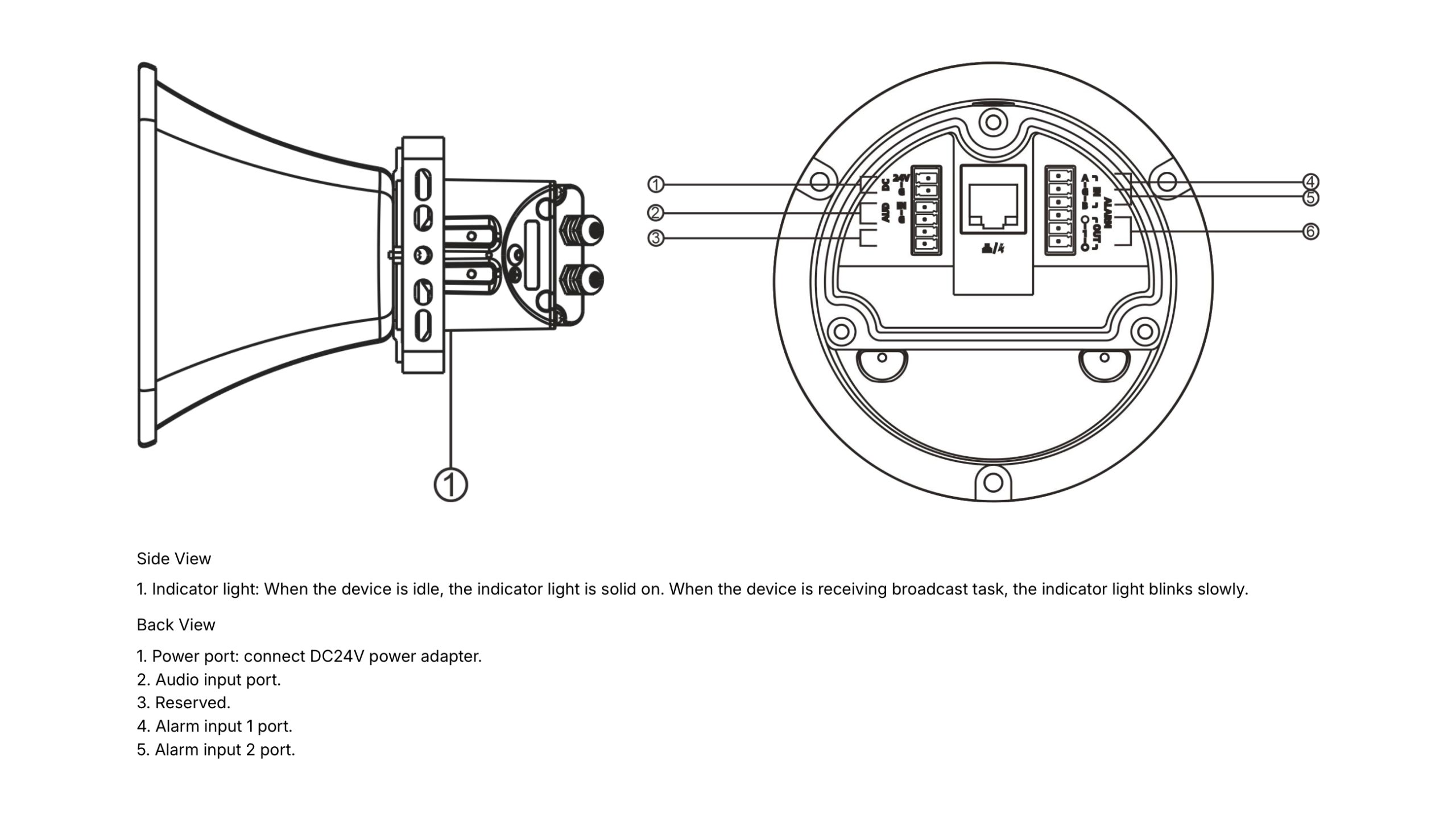

Front / Rear
Panel

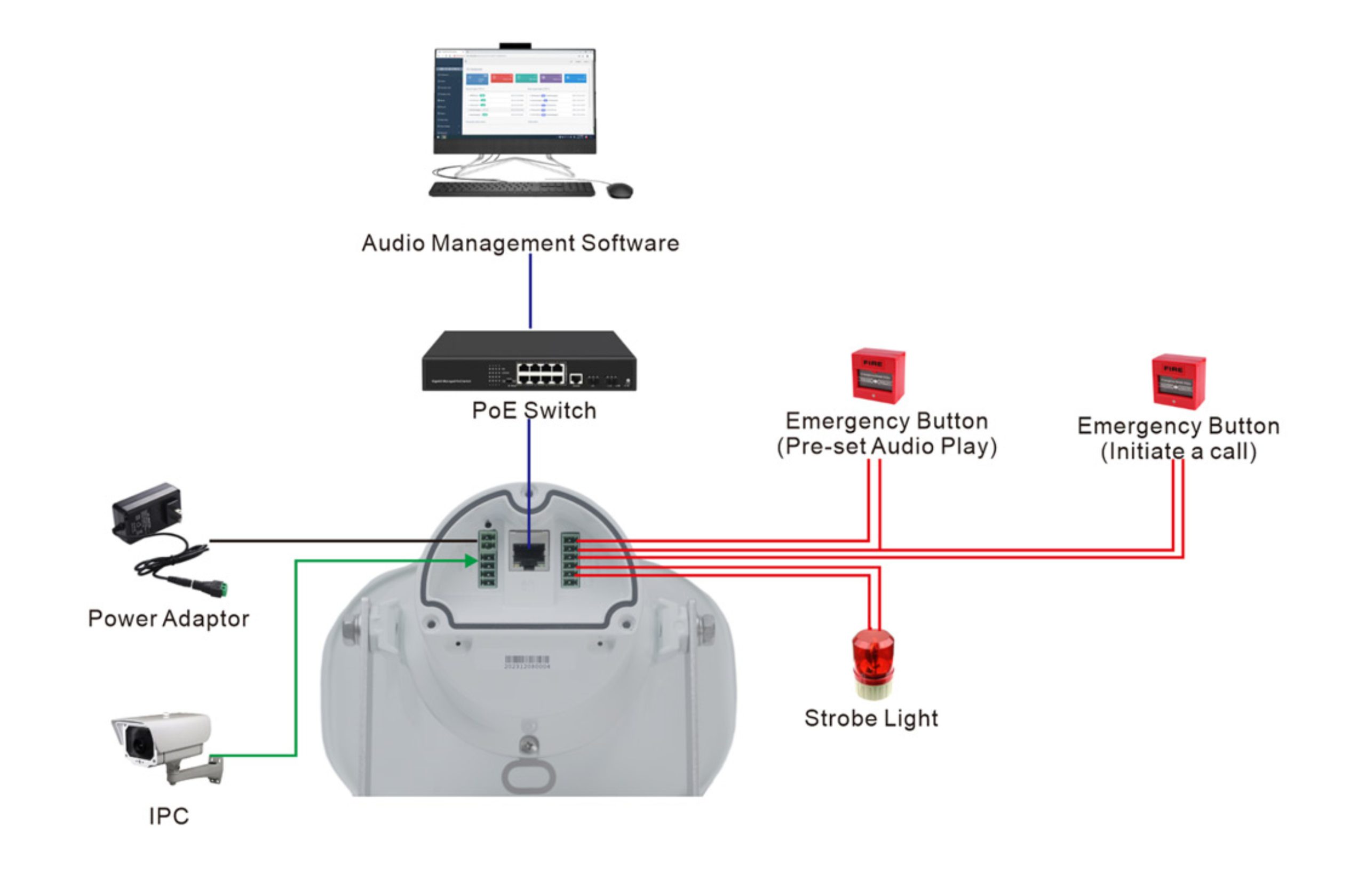

Connection Diagram
