ACS-WLBCS10
Battery Charging Station
Key Features
- Full charge in 4 hours.
- Remote battery status via integrated web page.
- Charges up to 10 battery packs simultaneously.
- Wide input range: 100V–240V AC.
- Buckle housing and pop-up pin contacts for secure, reliable connection.
- Lightweight, easy-to-move design
Description
Overview

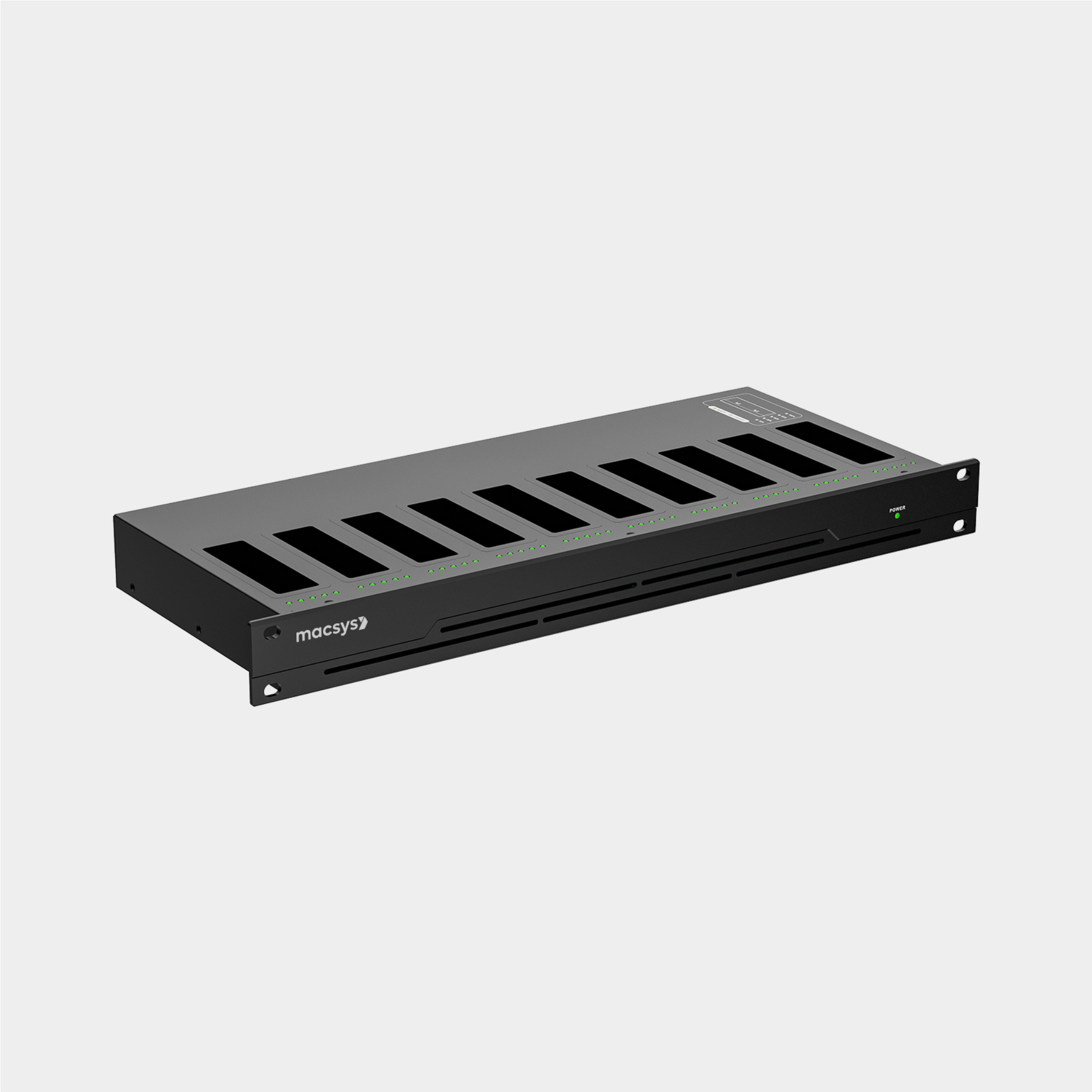

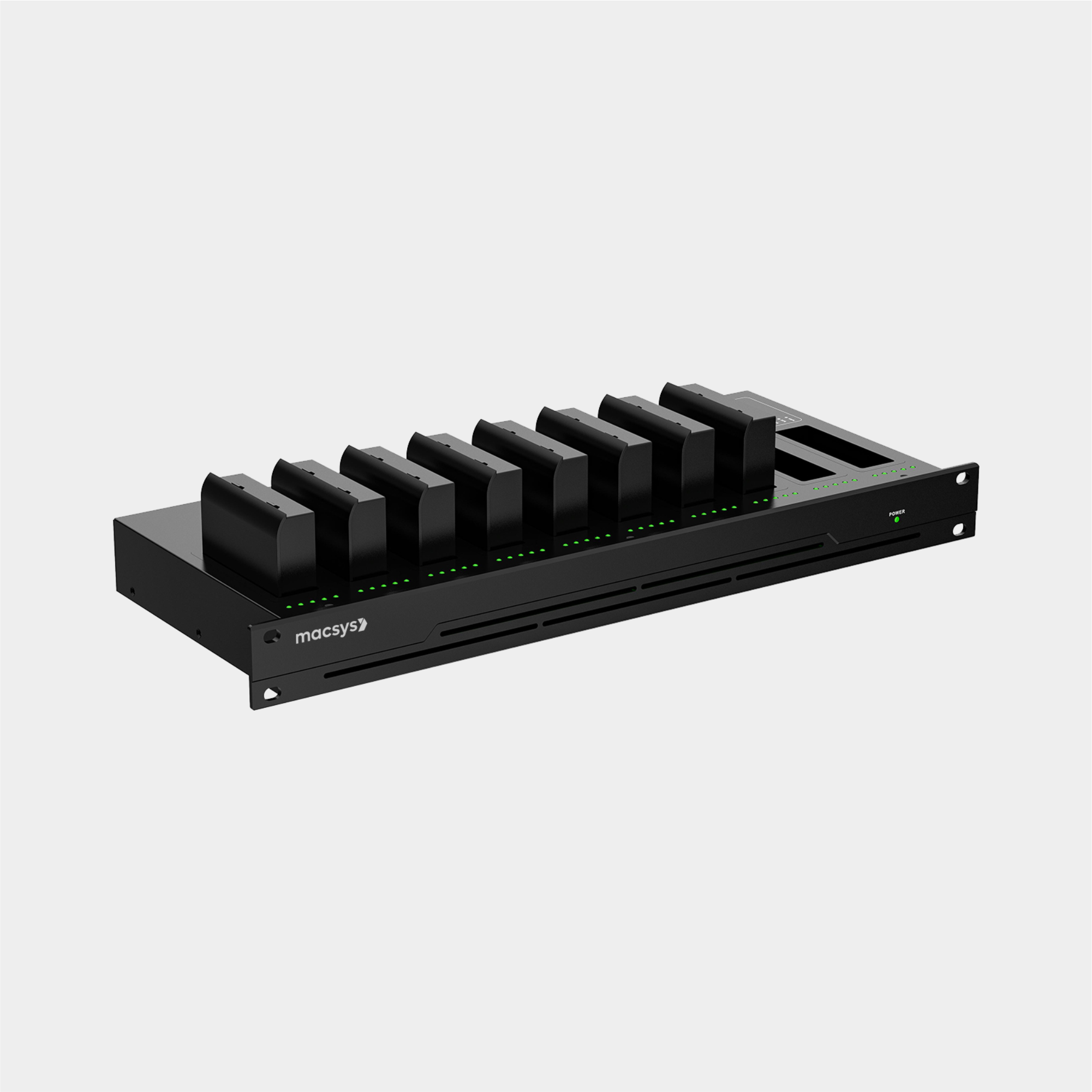

Macsys ACS-WLBCS10 is a battery charging station designed for efficient, multi-pack charging with remote status monitoring via an integrated web interface, based solely on the attached specifications. It supports simultaneous charging of up to ten compatible battery packs with a secure buckle housing and pop-up pin contact design to ensure reliable connections and easy handling. The unit fully charges packs in approximately four hours and operates across a wide input voltage range suitable for varied power environments. Compact and lightweight, it offers practical deployment with clear technical parameters on power, output, and physical dimensions for integration into conference system setups
Technical specifications
| Feature | Details |
| Power input range | 100 ~ 240VAC 50 ~ 60HZ |
| Output rating | 7.2V/1000mA |
| Power consumption | 20W |
| Charging capacity | MAX 10 pcs battery charging at one time |
| Full charge time | 4 hours needed to fully charge |
| Connection mechanism | Contactor by pop-up pins |
| Housing/retention | Buckle housing to prevent poor contact or dropping |
| Dimensions (L×W×H) | 530Lx200Wx52H(mm) |
| Weight | 2KG |
| Certifications | CE, RoHS compliance |
