ACS-WLAP5G
5G WiFi Wireless access point
Key Features
- Connectivity: Integrates with the Wi-Fi conference processor ACS-WLCCU or with a switch to extend the system with additional conference APs.
- Coverage Range: Typically covers up to 30 meters.
- Capacity: Each AP can support up to 50 conference units.
- Installation Options: Can be mounted on ceilings, and walls, or installed using a stand rack mount.
- Security Features: Employs 128-bit AES encryption, WPA2 secure connection, MAC address filtering, and SSID hiding to safeguard against eavesdropping and unauthorized access.
Description
Overview
Macsys ACS-WLAP5G is a dedicated 5G WiFi Wireless access point designed for wireless conference systems, providing stable dual‑band 5 GHz communication between the controller and conference units within the same room. It supports typical coverage up to 30 m and connects up to 50 conference units per access point for scalable deployments. The unit offers robust security with WPA2‑PSK AES, SSID hiding, and MAC address filtering, and features 128‑bit AES digital encryption to prevent unauthorized access. Flexible installation options include ceiling, wall, or stand rack mount, with PoE (802.3at) and 12 V DC power choices to simplify cabling. The device includes LED indicators for power, network audio, and wireless status, and provides a web interface for channel, SSID, and password configuration with default access at 192.168.2.1. Integration is via Gigabit WAN/PoE and LAN ports, supporting DHCP or manual IP addressing and cable runs up to 100 m on Cat5e or better.
Technical specifications
| Feature | Details |
| Item Name | 5G WiFi Wireless access point |
| Wireless standards | IEEE802.11ac, IEEE802.11a, IEEE802.11g, IEEE802.11b |
| Operating bands | 5GHz UNII; 5.2-5.8 GHZ |
| Max TX power | 27dBm |
| Antennas | Four built-in 5dBi antennas |
| Security methods | WPA2-PSK AES; 128 bits AES digital encryption; MAC address filtering; SSID-hiding |
| Typical coverage | 30m |
| Unit capacity | Each AP can connect up to 50 conference units |
| Power options | Power Over Ethernet, 802.3at, DC 12V 1.5A |
| Power consumption | ≤13W |
| Network ports | 1×Gigabit WAN/POE Port, 1×Gigabit LAN Port |
| Link rate | 1200Mbps |
| Addressing | DHCP or Manual IP address |
| Cable length | 100m (max) |
| Cable type | ≥Cat5e (shielded / unshielded) |
| Connector | 1× RJ45 |
| Port LEDs | WAN/POE Port (UP LED), LAN Port (Down LED) |
| Status LEDs | Power, Network Audio, Wireless (Yellow / Blue) |
| Reset control | Push button for Factory Reset |
| Mounting options | Ceiling, Wall or Stand Rack |
| Dimensions | 220L×220W×45H(mm) |
| Color | White |
| Weight | 0.3KG |
| WLAN channel mgmt | Channel selection via web; channels 36–64 or 149–165 usable |
| Certifications | CE, RoHS compliance |

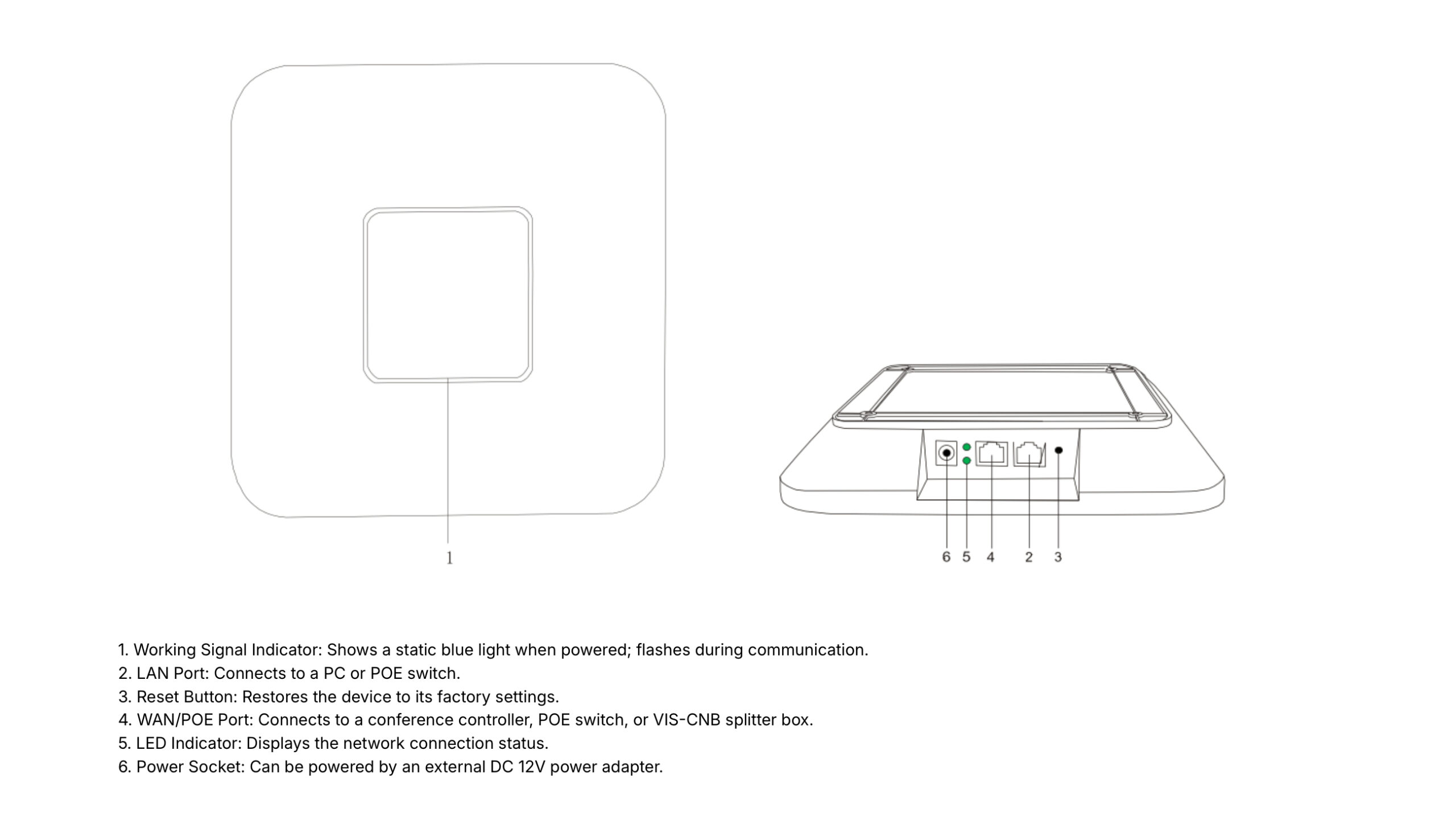

Front / Rear Panel

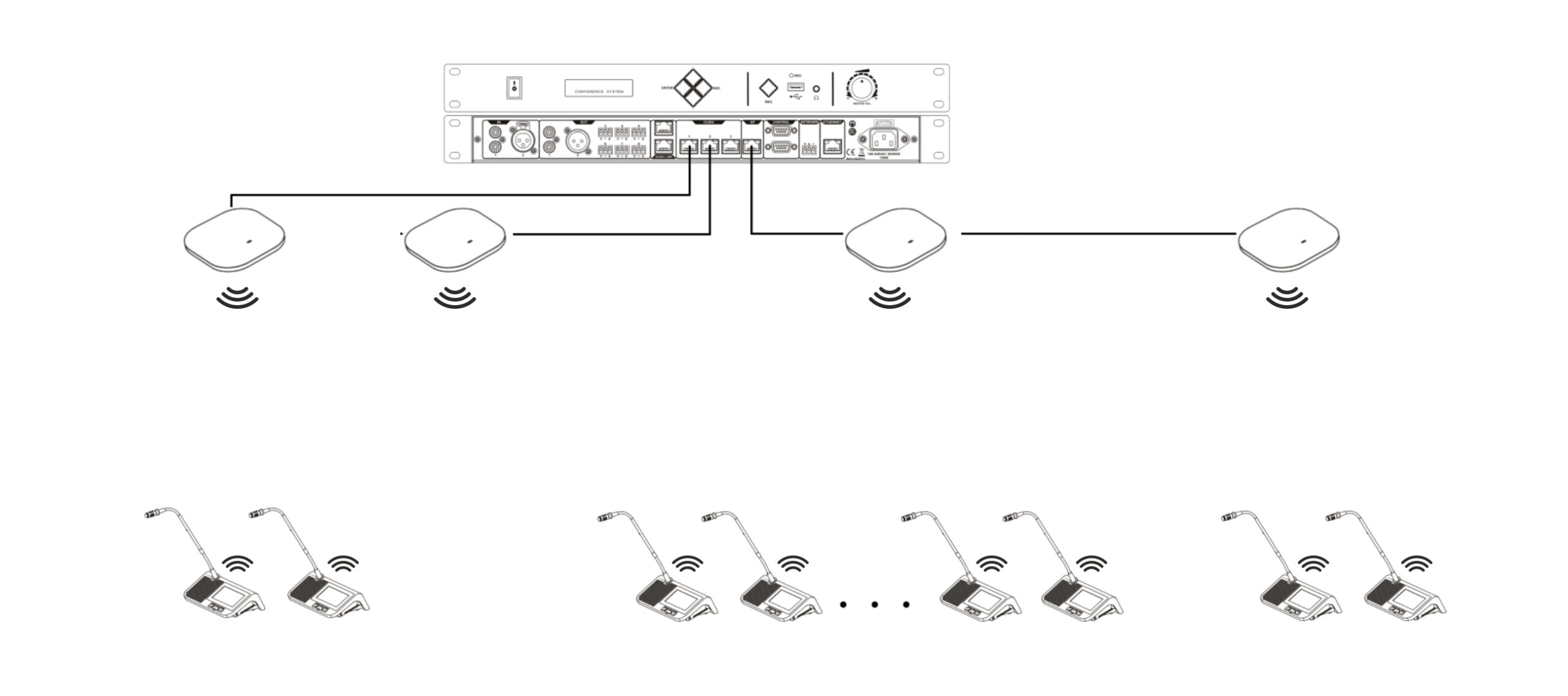

Connection Diagram
