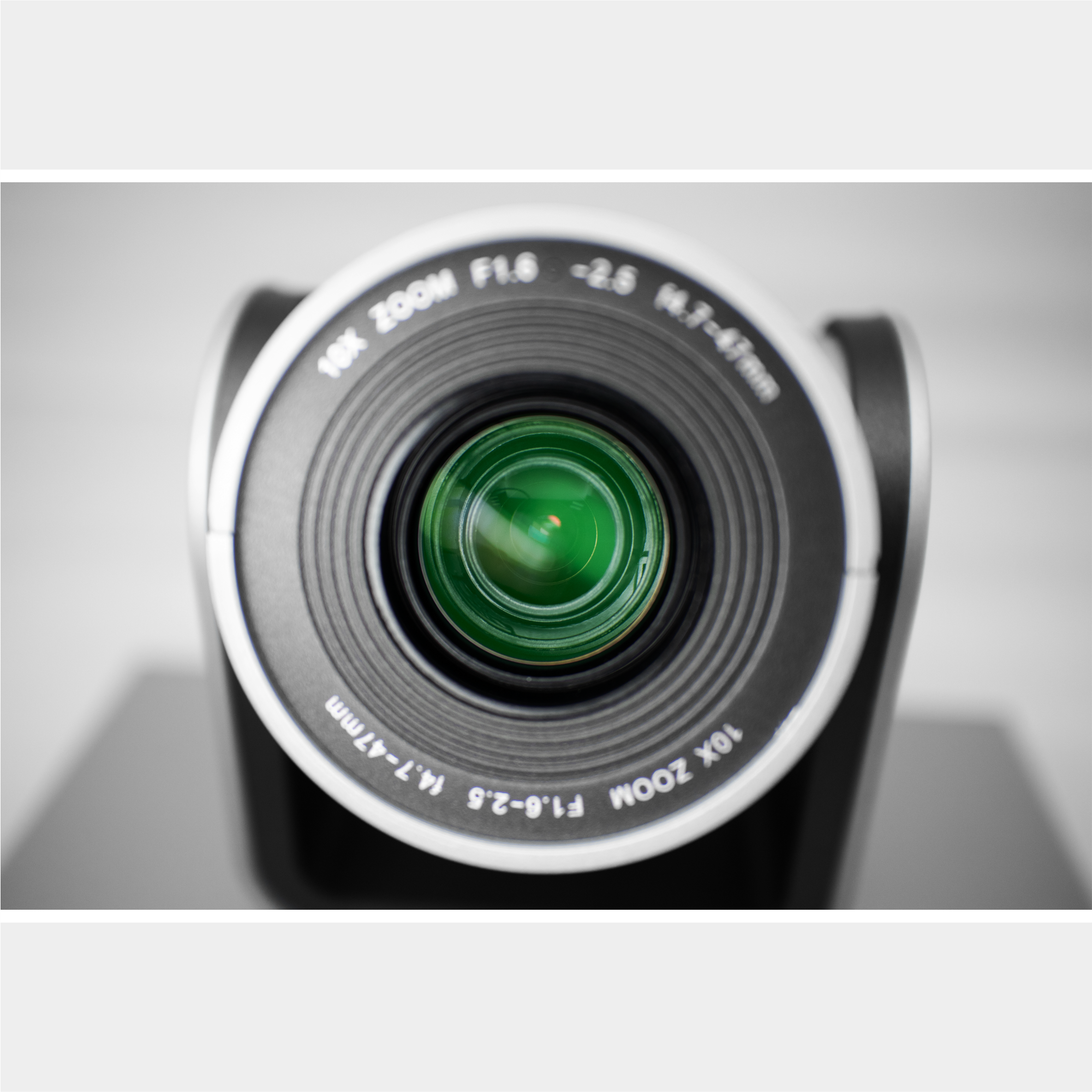

VC10-HD
1080p FHD 10X PTZ VC Camera
Key Features
- Premium PTZ Camera Design Private Tooling & Patent Design.
- 1080p@30fps 1/2.8″ CMOS, 2.1M pixel quality sensor output 30fps.
- HD optic lens, 10X optical zoom, HOV 84.0/62.0 degrees Wide view angle, F1.7-F3.0.
- Video output format USB 2.0 B type.
- PTZ Control protocol PELCO-D, VISCA, UVC 1.5.
Description
Overview
The Macsys VC10-HD Video Conference Camera is a high-performance camera designed for professional video conferencing, offering sharp, detailed video with its 2.1 MP CMOS sensor. It features a 10X optical zoom (4.7-47mm) and a 62° wide field of view, ensuring clear visuals even in larger conference rooms. The camera’s fast iris (F1.6-F2.5) and automatic focus and white balance deliver optimal image quality in a variety of lighting conditions. With a pan range of -165° to +165° and a tilt range of -30° to +30°, the VC10-HD allows for smooth and precise camera movements, with adjustable speed control for enhanced flexibility. The camera also offers customizable image styles such as Normal, Clear, Bright, and Beauty, all of which can be fine-tuned for improved video clarity.
Connectivity options include USB 2.0, RS-232, and RS-485 ports, allowing for easy integration with video conferencing systems and remote control setups. The camera supports multiple video resolutions up to 1080p (H.264/MJPEG) and up to 30fps for smooth, high-quality video. Designed to perform in a wide range of environments, it operates in temperatures from 0° to 50°C and can handle humidity levels from 0% to 95%. Compact, versatile, and highly functional, the Macsys VC10-HD is an ideal solution for boardrooms, classrooms, and other professional settings, providing excellent video quality and seamless system integration.
Technical specifications
| Feature | Details |
| Image sensor Parameters | |
| Sensor | 1/2.8° CMOS, 2.1 megapixel |
| Zoom | 10X |
| Focus | f=4.7-47mm |
| Iris | F1.6-F2.5 |
| HOV | 62° |
| Focusing | Auto |
| White Balance | Auto, Manual |
| Backlight Compensation | Support |
| Image Flip | Image reverse, Mirror flip |
| Image Style | Normal, Clear, Bright, Beauty |
| Video adjustable | Brightness, Contrast, Hue, Saturation, Clarity, white balance, Back light |
| OSD Menu | Chinese, English |
| PTZ Parameters | |
| Horizontal Movement | -165°- +165° |
| Tilt Movement | -30°- +30° |
| Horizontal movement speed | 1°- 40.3°/S |
| Tilt movement speed | o.8.- 26.6°IS |
| Speed Match | Support |
| Command Protocol | VISCA, PELCO-D |
| Preset Position | 64 (including special preset position) |
| Baud Rate | 38400bps, 9600bps, 4800bps, 2400bps |
| Input/output Connectors | |
| DC IN | DC IN 12V |
| Control Interface | 1xRS-232 IN / 1xRS-485 |
| USB 2.0 B type | 1 XUSB2.0 B type, support UVC, H.264/MJPEG: 1920×1080, 1600×896, 1280×720, 1024×768, 1024×576, 960×540, 848×480, 800×600, 800×448, 720×576, 640×480, 640×360, 480×272, 325×288, 320×240, YUY2: 848×480, 800×600, 800×448, 720×576, 640×480, 640×360, 480×272, 352×288, 320×240 H.264/MJPEG: support 30fps, YUY2: 848×480,800×600,800×448 support 25 fps , other resolution support 30 fps |
| General info | |
| Working Environment | Working temperature 0° – 50°, working humidity 0% – 95% |
| Dimension(LxWxH) | 180mm x 112mm x 129mm |
| Weight | 520g |
| Color | Black, Silver |
