PAS-NWA60
Network Wall Mount Amplifier 60 Watt
Key Features
- Durable: Built for long-lasting use.
- Web Configurable: Easy setup via web interface.
- Stable Output: Consistent voltage for clear audio.
- Compact wall-mounted 100V amplifier with built-in Class D 2*30W output
- Local 3.5mm unbalanced line input/output
- Relay I/O for integration with alarms, strobes, and sensors.
- Receives broadcasts from management software, IP paging mics, mobile apps, and SIP trunk phones.
Description
Overview
The Macsys PAS-NWA60 is a 60W 100V IP Wall Mount Amplifier designed for seamless integration into modern PA and VoIP systems. Built with a compact, all-metal structure, it combines rugged durability with space-efficient installation—ideal for corridors, office areas, and other small to medium-sized environments. Its built-in Class-D amplifier delivers 2×30W (60W total) output to constant-voltage speakers, while advanced features such as SIP compatibility, DSP-based fast startup, and intuitive web configuration make it reliable for both commercial installations and emergency communication.
With support for SIP trunk announcements, IP paging microphones, management software, and mobile apps, the PAS-NWA60 ensures flexible broadcasting and dependable voice clarity. Its robust design, high efficiency, and user-friendly setup make it a powerful choice for public address and safety communication systems.
Technical specifications
| Feature | Details |
| Type | Network 100 Volt Wall Mount Amplifier |
| Design | Space-efficient, compact, wall-mounted design |
| Built-in amplification | Built-in Class D amplifier offering 2*30W (100V) power output |
| Rated power output | 60W |
| Rated loudspeaker voltage | 100V |
| Audio input | 3.5mm line input TS Jack (Unbalanced, Sensitivity/Impedance: 1V/10kΩ) |
| Audio output | 3.5mm line output TS Jack, active speaker can be connected to this port |
| Relay input | 2-Pin Pluggable Terminal Block (3.50mm Pitch, AWG 26-16), Normally Open (NO) Dry Contact |
| Relay output | 2-Pin Pluggable Terminal Block (3.50mm Pitch, AWG 26-16), Normally Open (NO) Dry Contact |
| Network interface | 10BASE-T/100BASE-TX RJ45 |
| Network protocols | HTTP, TCP/IP, UDP, ARP, ICMP, IGMP |
| Configuration | Web Interface or Config Tool |
| Audio codecs | MP2, MP3, PCM, ADPCM |
| Sampling/bit rate | 8kHz~44.1kHz, 16bit, 8kbps~320kbps |
| Frequency response | 60Hz~10kHz |
| THD | ≤0.3% at 1kHz |
| S/N ratio | ≥75dB |

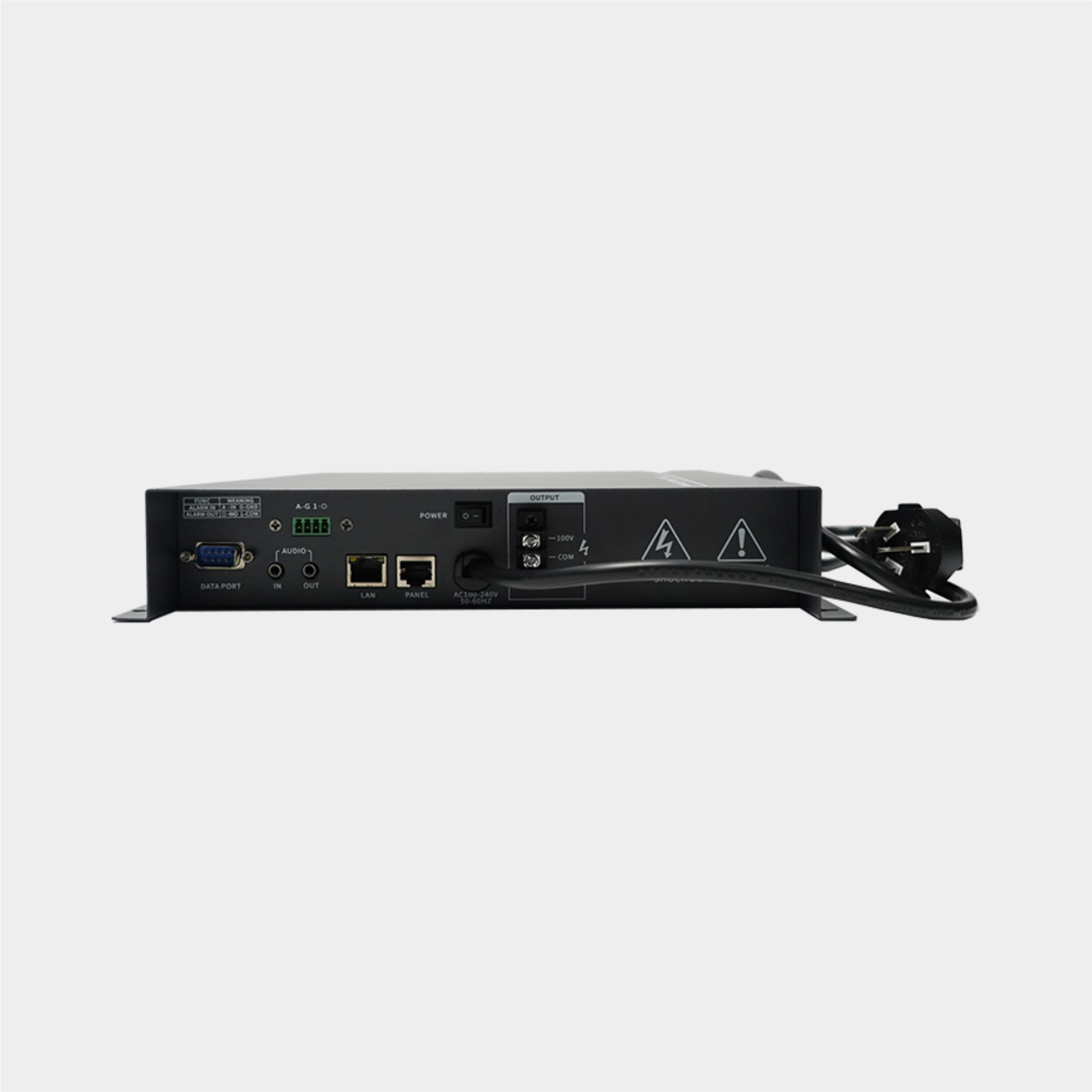

| Ports overview | Line Input; Line Output; Network Port; Relay Input; Relay Output; Power switch; Speaker Output |
| Speaker output terminal | COM/100V constant-voltage output; COM is common |
| Broadcasting sources | Management software, IP paging microphones, mobile apps |
| SIP interoperability | Receives voice announcements from third-party SIP phones via SIP trunk |
| Remote management | Supports remote configuration and online firmware updates |
| Power supply | AC 100V-240V, 50/60Hz |
| Standby power consumption | ≤75W |
| Operating temperature | -10℃~+50℃ (14℉~122℉) |
| Storage temperature | -40℃~+60℃ (-40℉~140℉) |
| Operating humidity | ≤90% RH non-condensing |
| Mounting | Wall-mounted |
| Installation environment | Dry Indoor Locations Only |
| Front panel material | Aluminum Alloy |
| Chassis material | Surface-Treated Steel Plate |
| Color | Black |
| Dimensions | 337×283.5×50.5mm |
| Weight | 4.3Kg |
| Accessories | 1×4-Pin Pluggable Terminal Block Connector (3.81mm Pitch, AWG 26-16); 4×Flat Head Self-Drilling Screw & Plastic Wall Anchor; 4×Floor Pad |
| Certification | CE, ROHS Compliance |
Front Panel

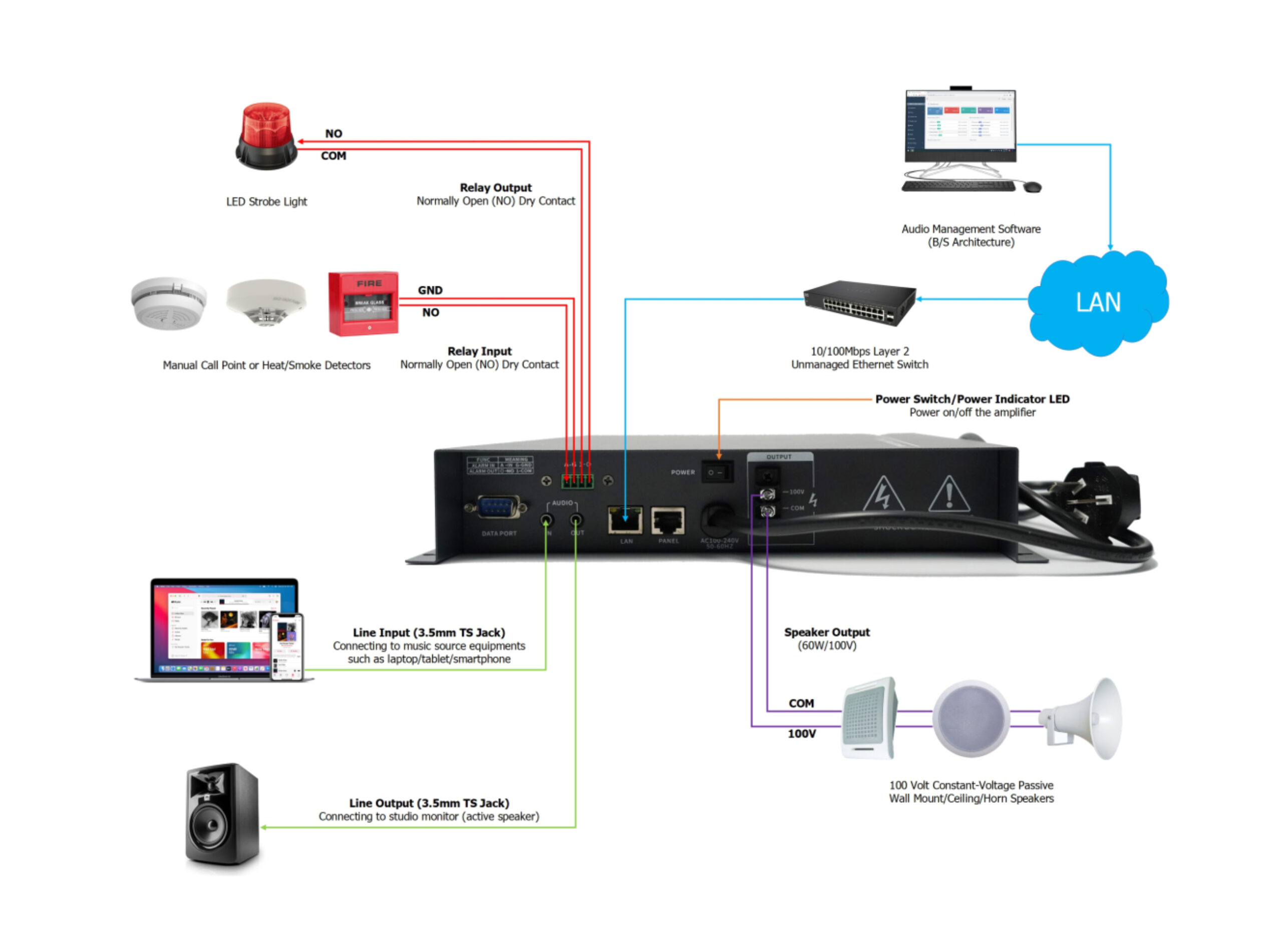

Connection Diagram
