ACS-WRCU
Digital Wired Chairman Unit
Key Feature
- Elegant, Compact Design with a touch-responsive interface.
- Integrated High-Quality Speaker for exceptional sound performance.
- Dual Headset Ports with volume adjustment on both sides.
- Line-In Port supports connections to microphones and other devices like smartphones and laptops for teleconferencing.
Description
Overview
The Macsys ACS-WRCU Digital Wired Chairmen Unit combines over a decade of innovation with sleek design to enhance your conference experience. Featuring AUDIOSYS digital ring network technology for crystal-clear, interference-free audio, this unit offers a stylish, low-profile design with a scratch-resistant back-lit glass control panel. It supports standard CAT5e and RJ45 connections for easy installation and flexible cable management, while the high-fidelity loudspeaker and dual-headset interface ensure superior audio quality. Optional line-in capability adds versatility, and the “Hand-in-Hand-Loop-Network” ensures reliable performance throughout your conference.
Technical specifications
| Feature | Details |
| Button | Touchable interface |
| Sound Pickup Type | Heart-shaped capacitance |
| Sensitivity | -46 dBV / Pa |
| Max Power Consumption | 2.0W |
| Directivity | 0° / 180° > 20 dB at 1 kHz |
| Headphone Load Impedance | 16Ω |
| Headphone Output Power | 10mW |
| Headphone Jack | 3.5mm stereo |
| Input Impedance | 2kΩ |
| Signal-to-Noise Ratio (SNR) | 70 dB |
| Frequency Response | 20 Hz to 20,000 Hz |
| Audio Sampling Frequency | 48K Hz |
| Connection Type | CAT5 / CAT6 cable with snap connector |
| Equivalent Noise Level | 20 dBA (SPL) |
| Main Materials | Aluminum cover and ABS base |
| Max Sound Pressure Level | 125 dB (THD <3%) |
| Weight | 1.1 kg (with microphone) |
| Dimensions | 120W × 140L × 33H mm (excluding microphone) |
| Operating Temperature Range | 0°C to +55°C |
| Color | Black |
| Certifications | CE, RoHS compliance |

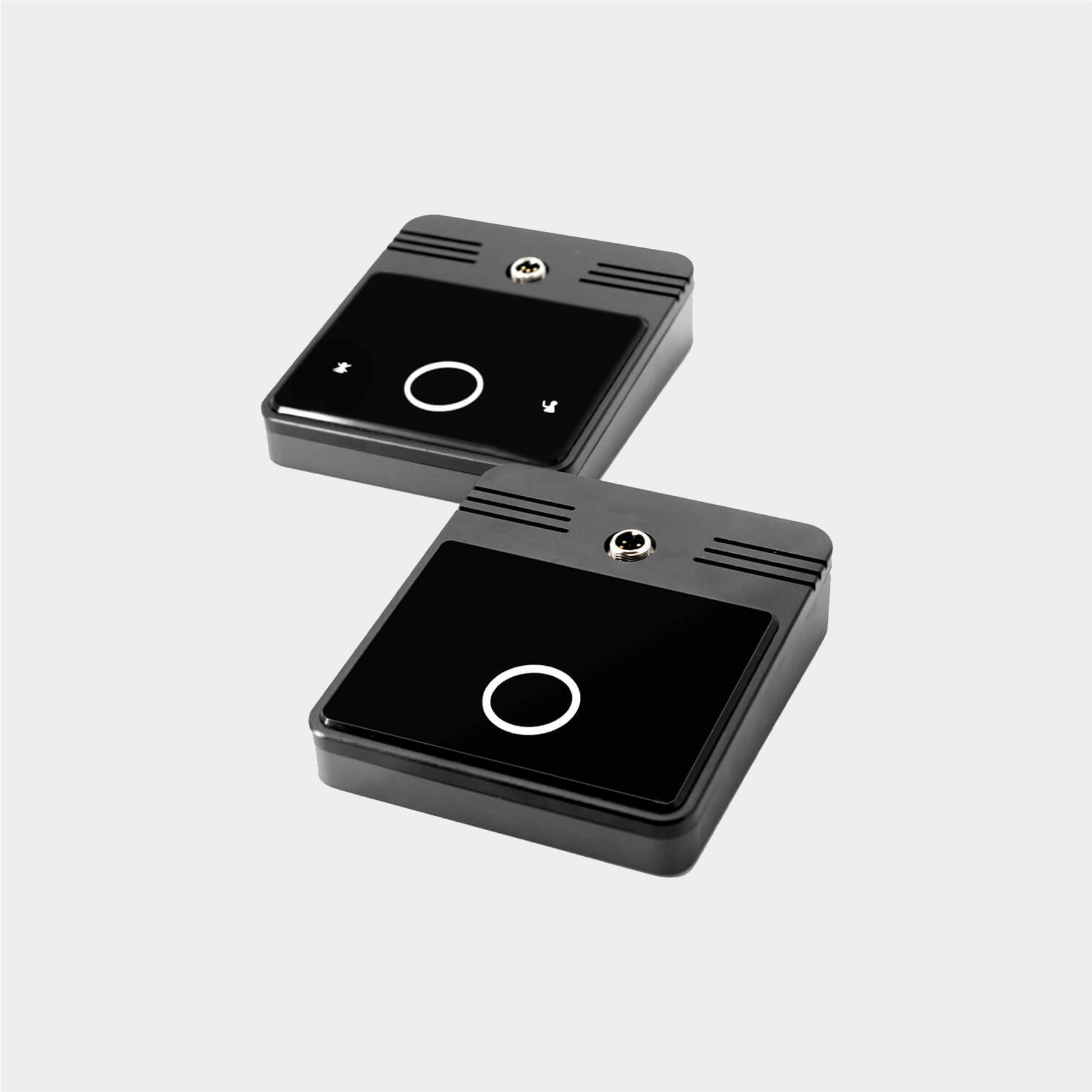

Front Panel

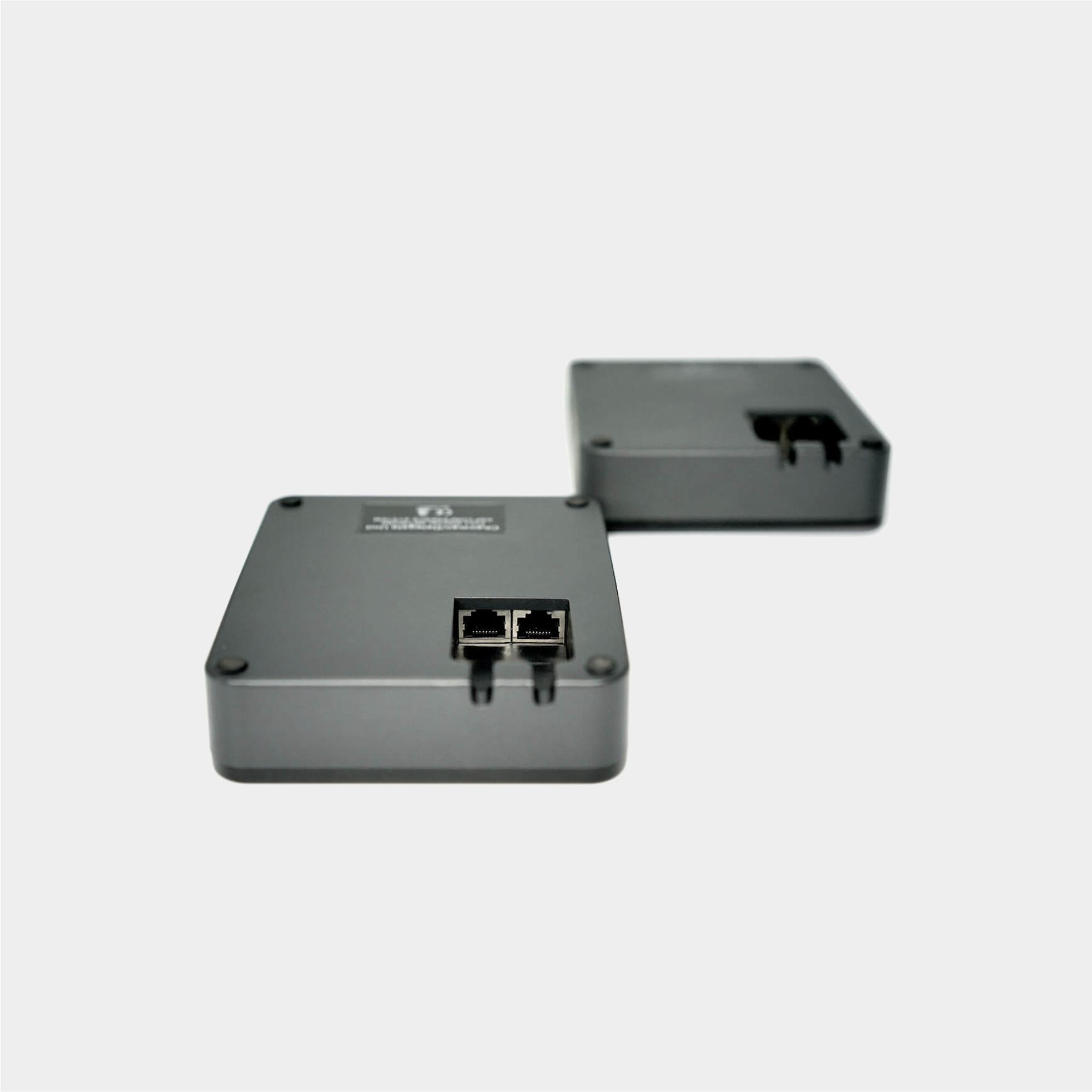

Rear Panel
Connection Diagram
